3RD-02-21

Overview

Designer Plan Number:

3RD-02-21

Bedrooms:

4

Bathrooms:

3

1/2 Bathrooms :

1

Levels:

2

Sq. Ft.

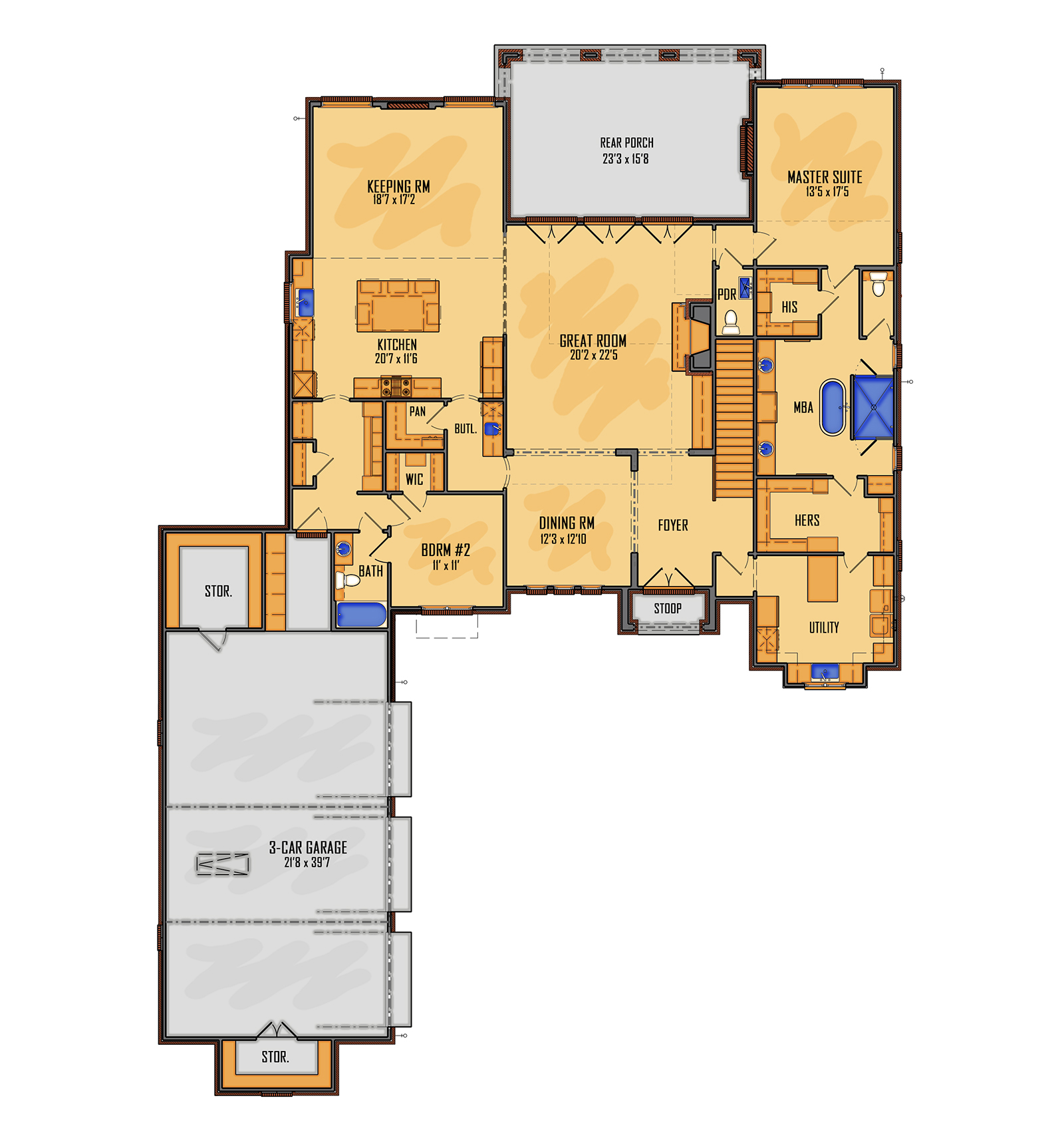

First Floor:

2689

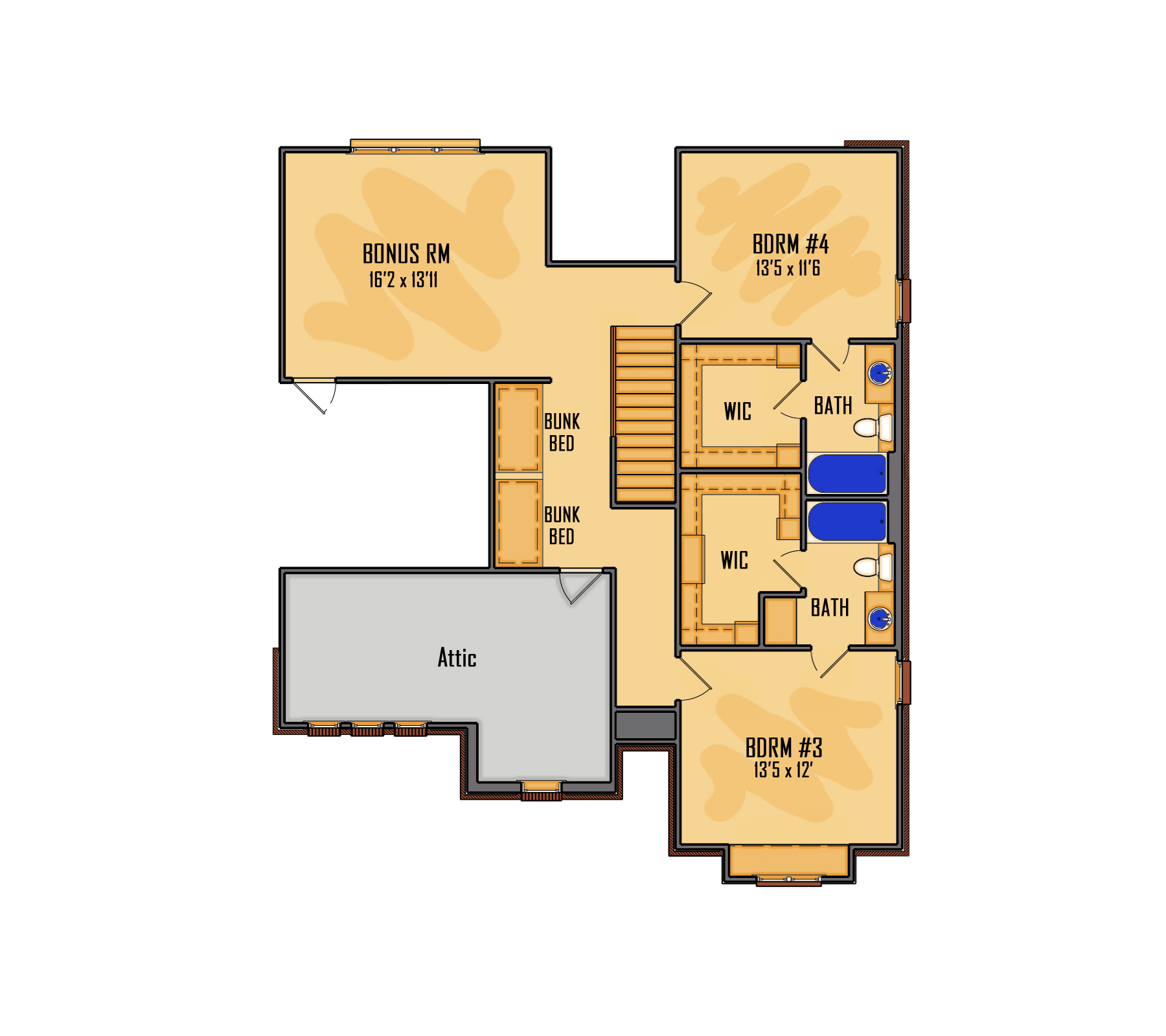

Second Floor:

1055

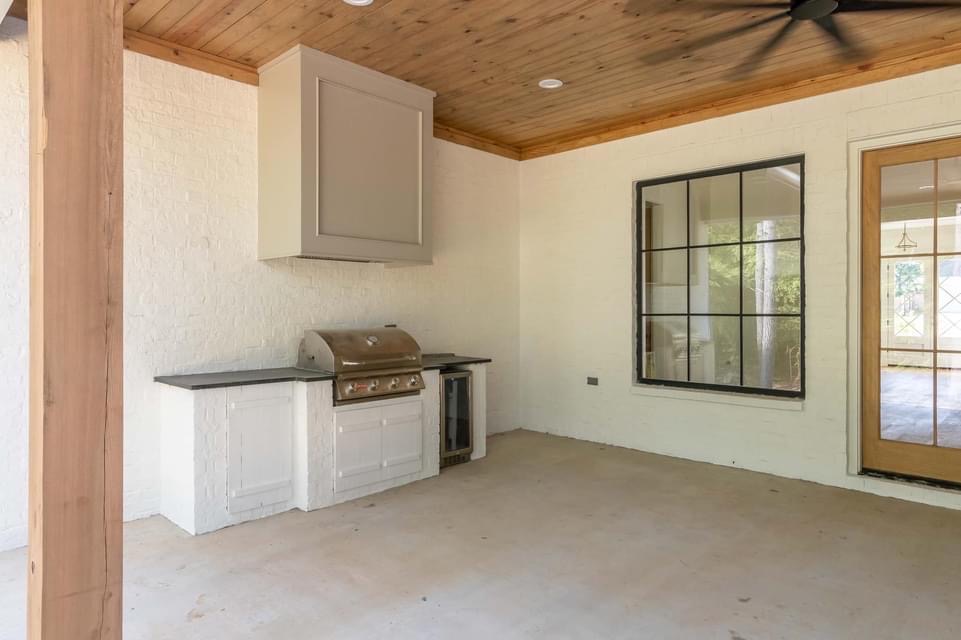

Porches:

446

Total Heated and Cooled:

3835

Total Sq. ft. Under Roof:

5290

Purchase Options

5 Sets, +$1,200.00

9 sets, +$100.00

Mirrored Plan, +$225.00

PDF, +$400.00

•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•

Details

Features

General Options:

Bonus Room

Designed for Views

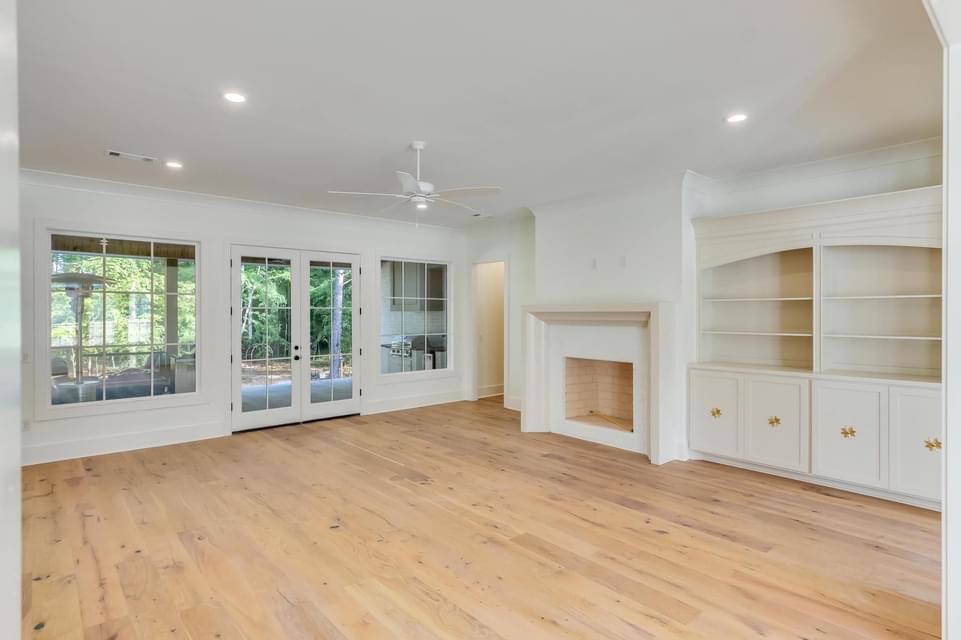

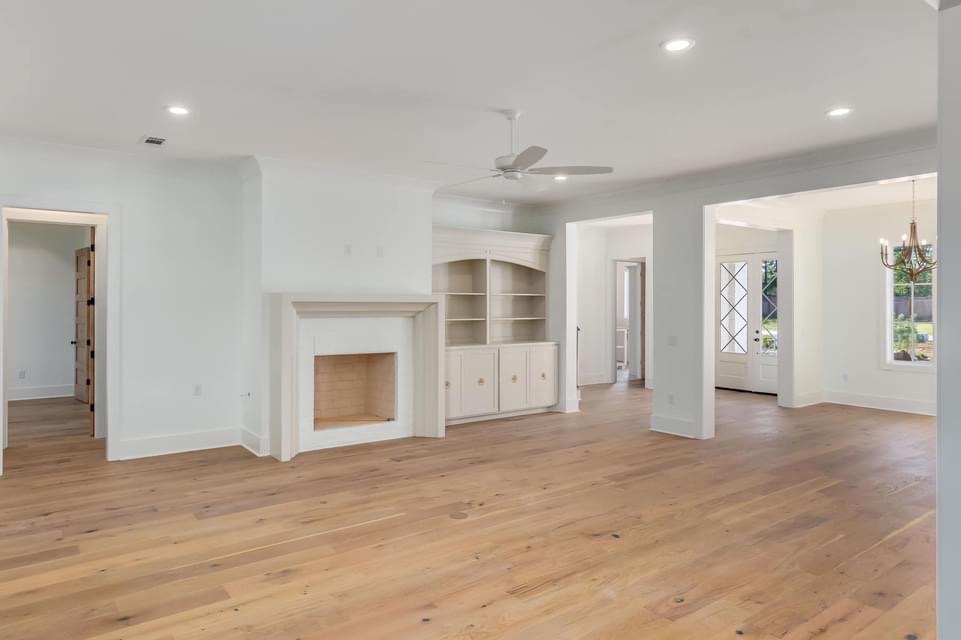

Fireplace

Flex Space

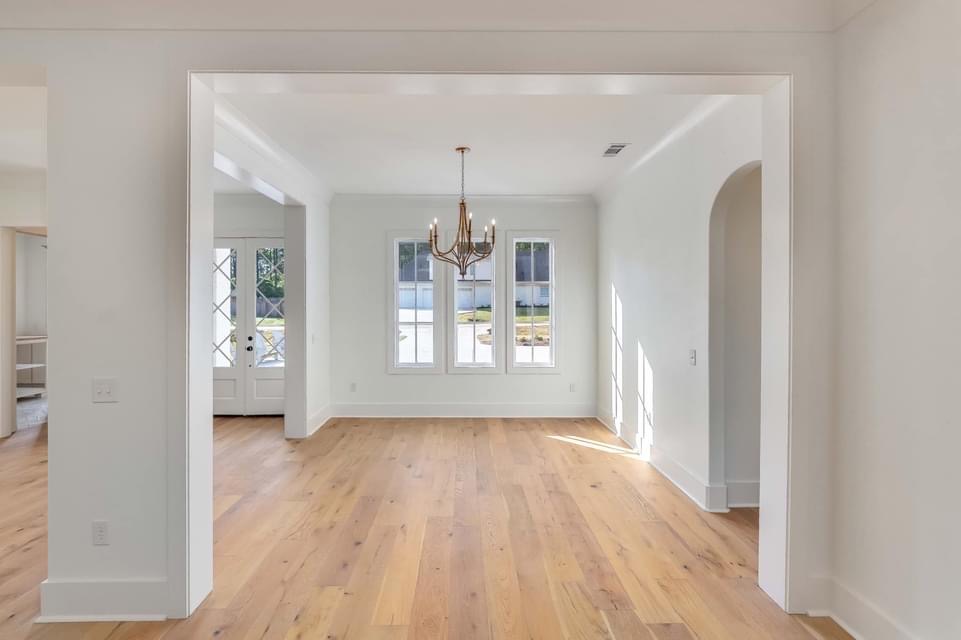

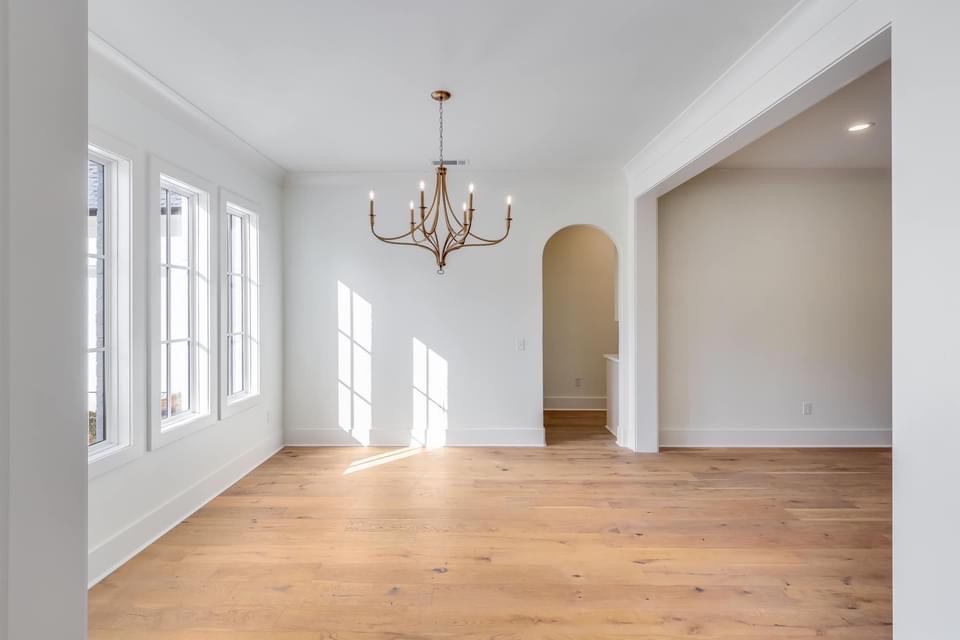

Formal Dining

Foyer

Keeping Room

One Eating Area

Split Plan

Walk-in Closets

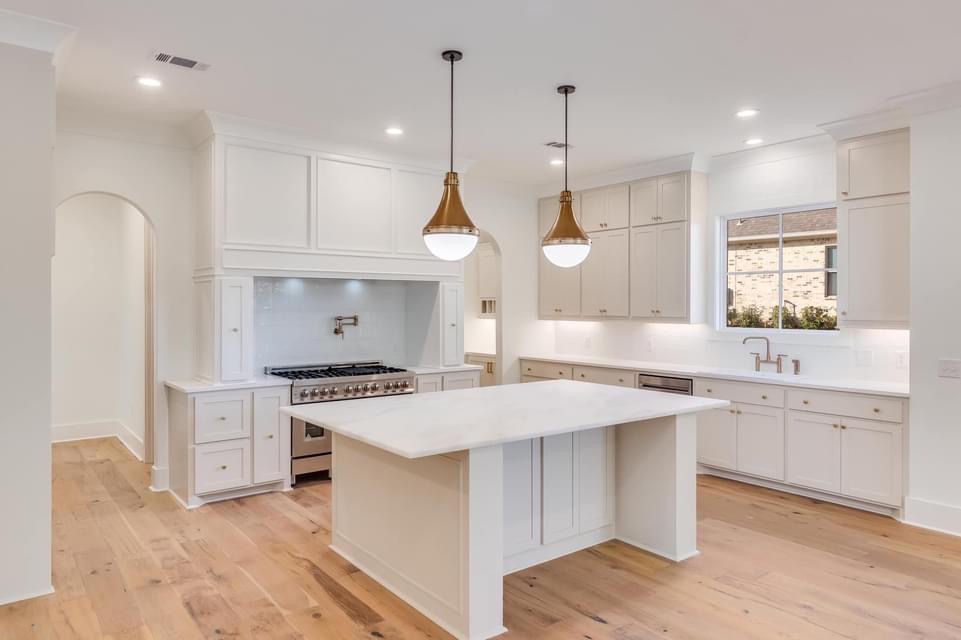

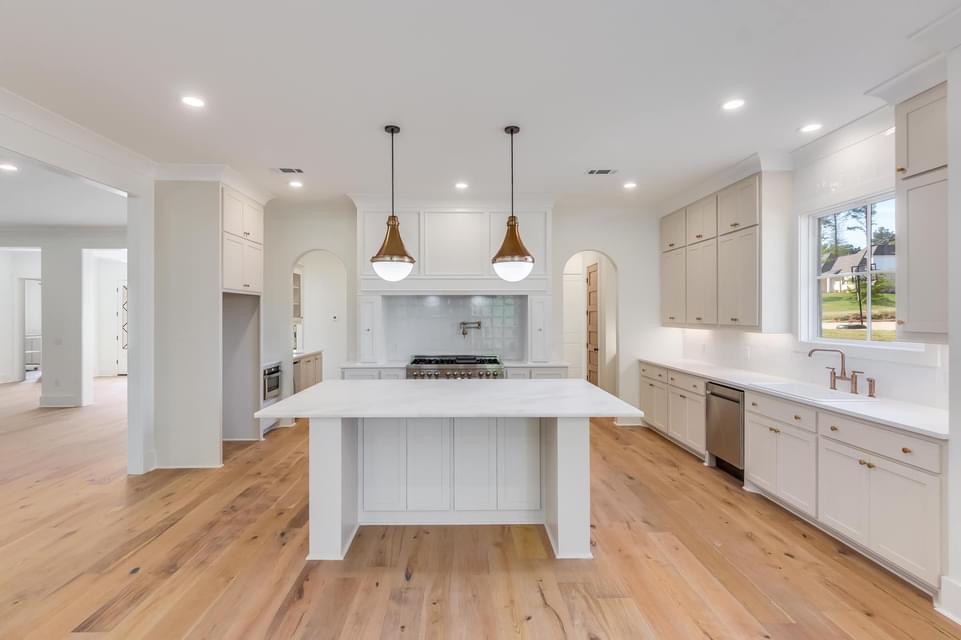

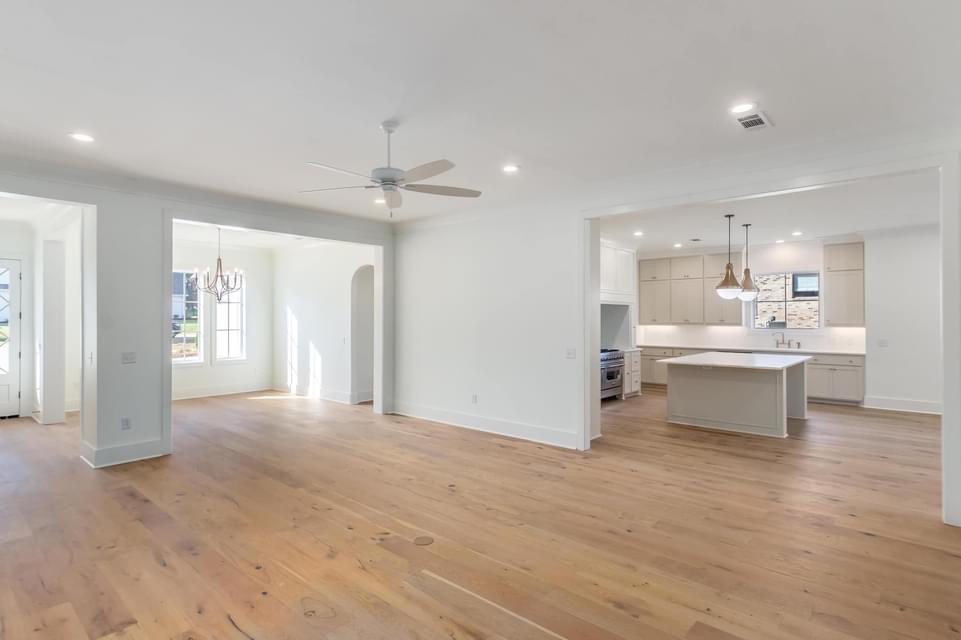

Kitchen Options:

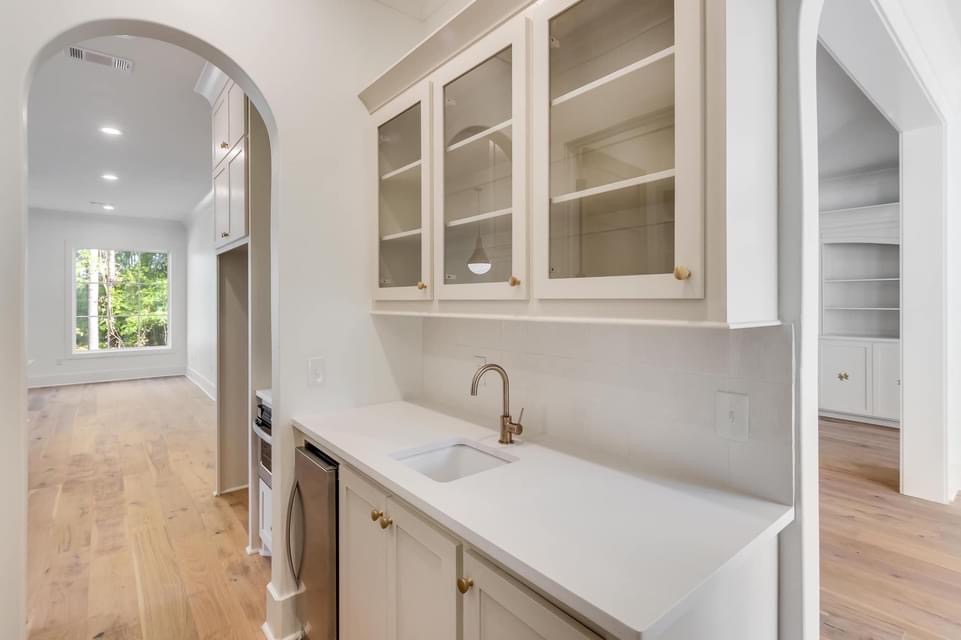

Butler's Pantry

Double Ovens

Island

Walk-in Pantry

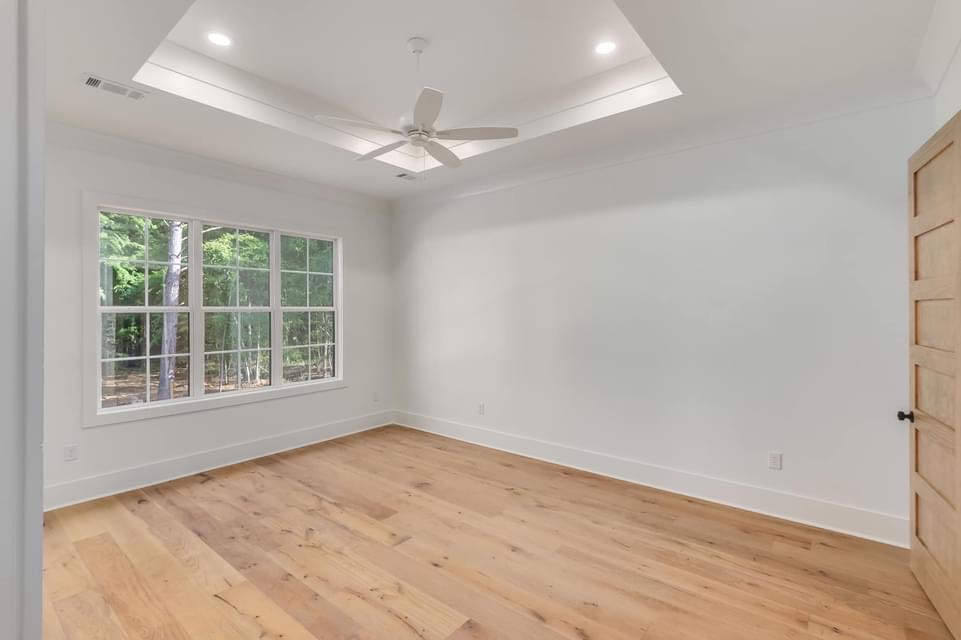

Master Suite Options:

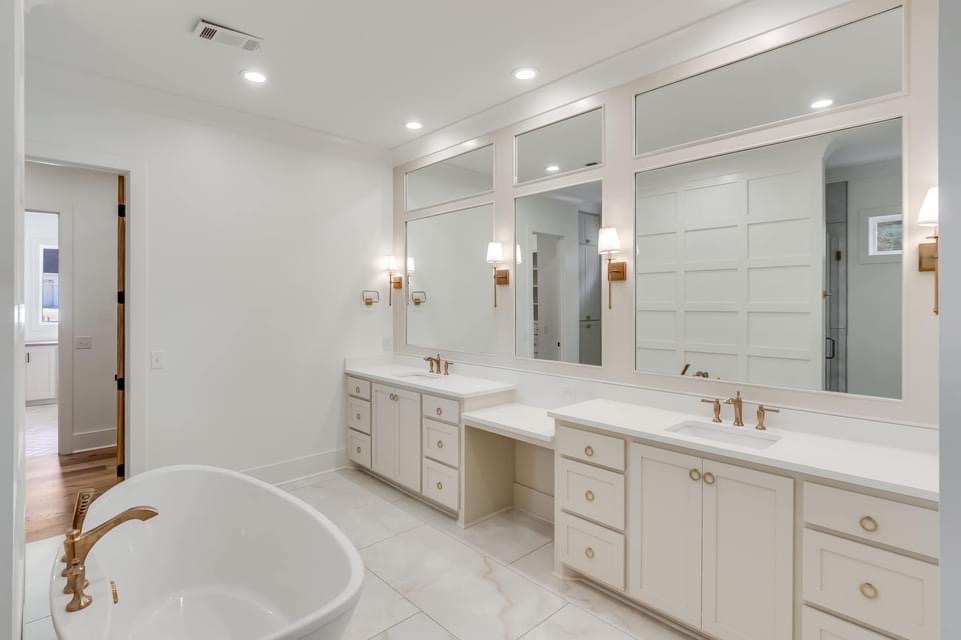

Dual Sinks in Master Bath

Enclosed Toilet Room

His & Her Closets

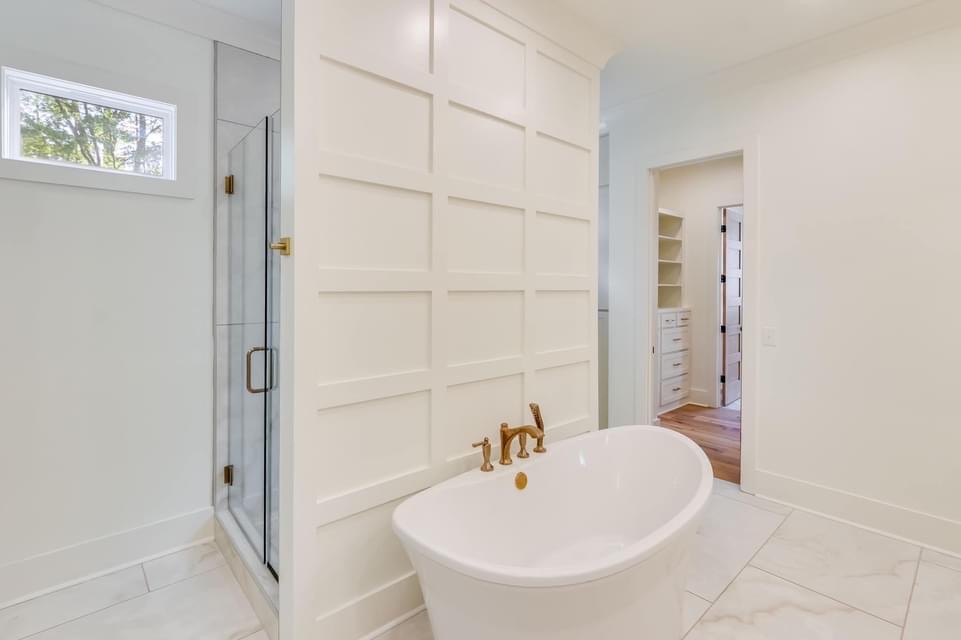

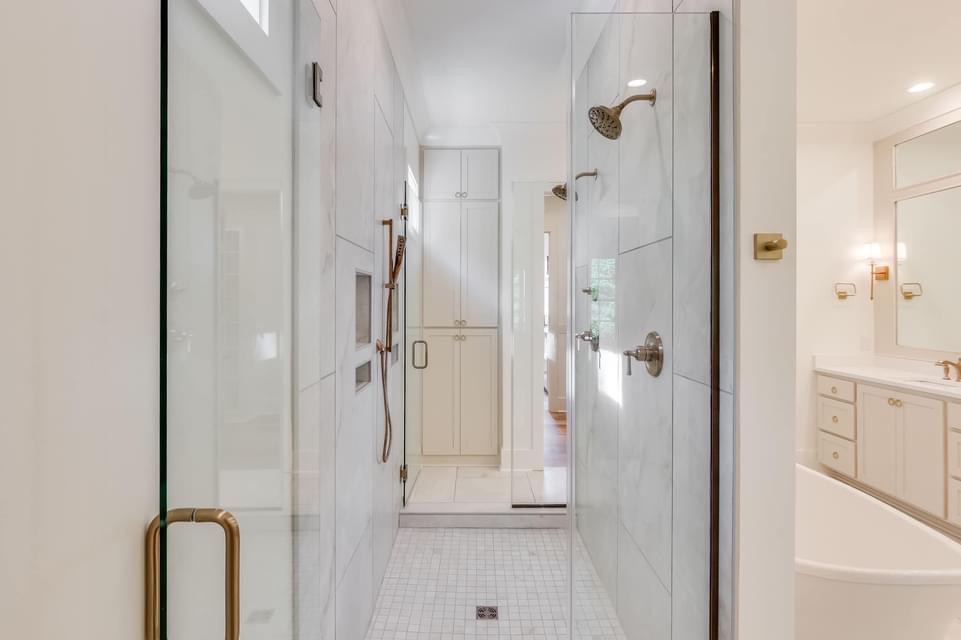

Separate Tub and Shower

Garage

Garage:

1100 (including storage)

Garage Stalls:

3

Garage Entry:

Courtyard

Style:

Country

Farmhouse

Traditional

Dimensions

Ridge Height:

ft.:

32

in.:

10

Width:

ft.:

72

in.:

7

Secondary Ceiling Height:

ft.:

9

in.:

0

Depth:

ft.:

102

in.:

3

Main Ceiling Height:

ft.:

10

in.:

0

Wall Framing:

2"x4" studwalls

Roof

Main Roof Slope:

10/12

Roof Material:

Shingles

Roof Framing:

Stick Built

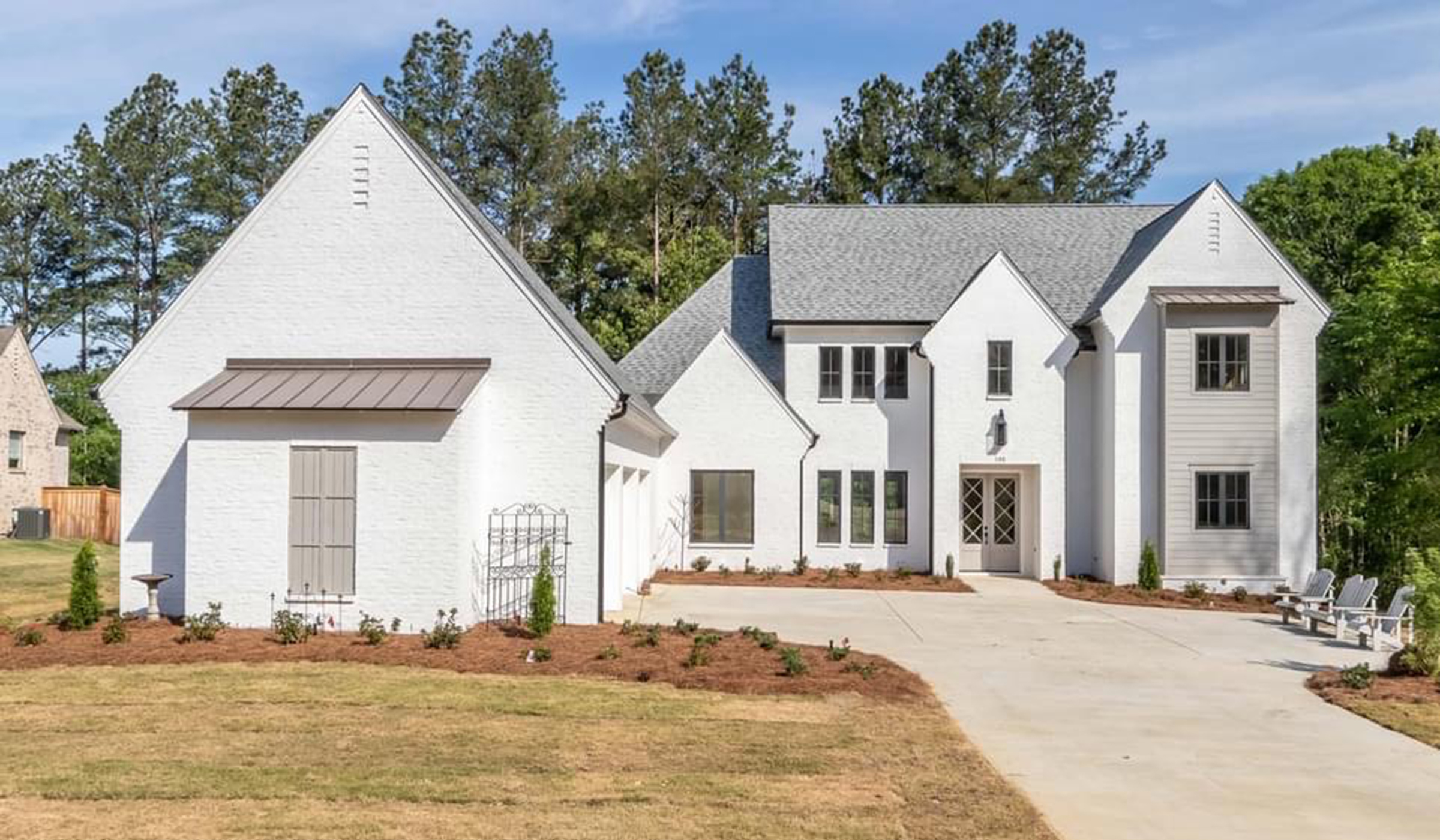

Exterior Materials:

Brick

Siding

What's Included:

Cover Sheet

Cross Section{s}

Detailed Floor Plan(s)

Electrical Plans

Exterior Views

Foundation plan

Roof Plan, Birds Eye View

Wall Section(s)

$12.00

SKU: 3RD-02-21

Price: $12.00
