3RD-06-17

Overview

Designer Plan Number:

3RD-06-17

Bedrooms:

4

Bathrooms:

3

1/2 Bathrooms :

1

Levels:

1.5

Sq. Ft.

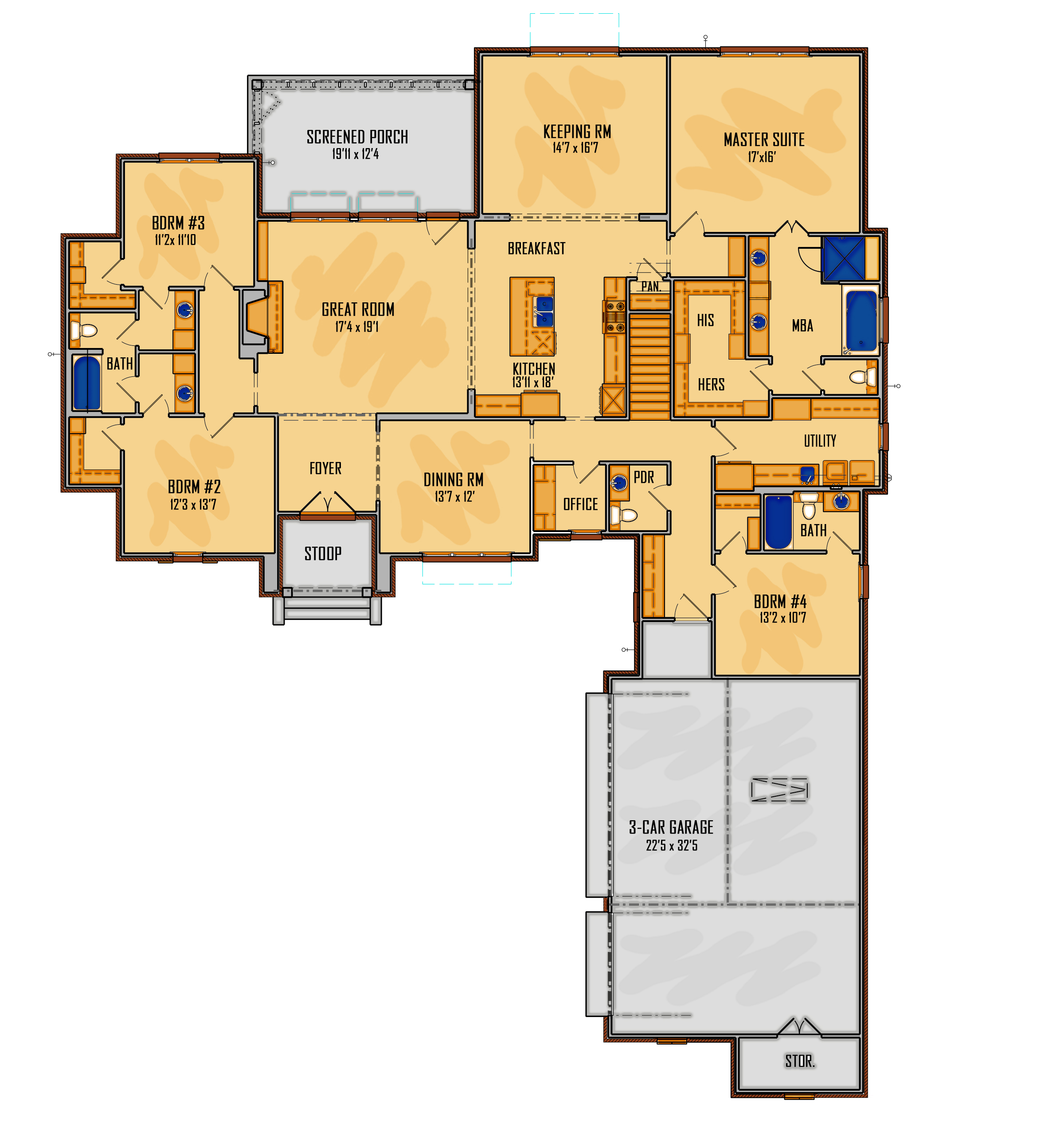

First Floor:

2923

Porches:

317

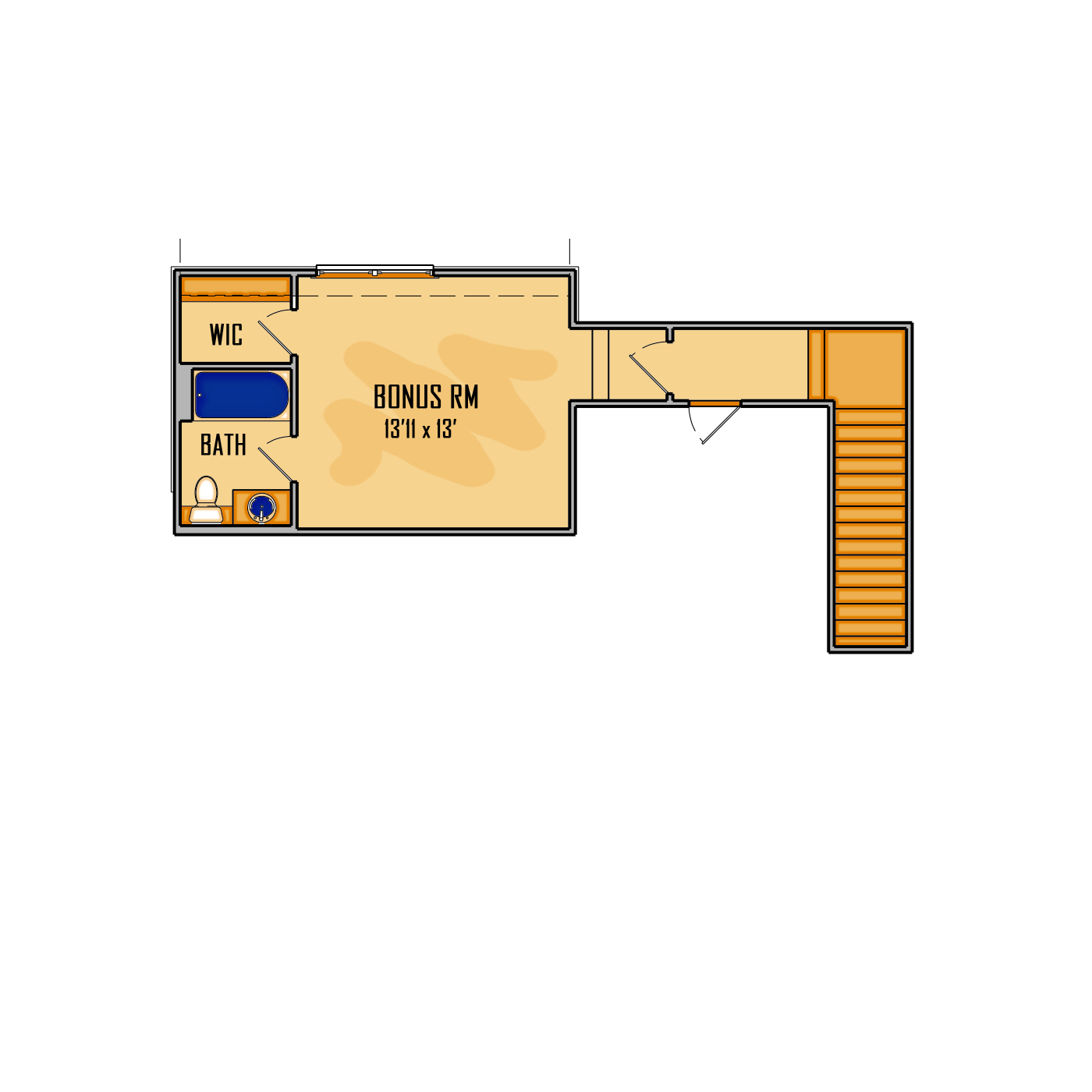

Bonus Room:

354

Total Heated and Cooled:

3030

Total Sq. ft. Under Roof:

4077

Purchase Options

5 Sets, +$900.00

9 sets, +$100.00

Mirrored Plan, +$225.00

PDF, +$400.00

•
•
•
•

Details

Features

General Options:

Bonus Room

Exercise Room

Fireplace

Foyer

Keeping Room

Office

Open Floor Plan

Split Plan

Storage

Walk-in Closets

Kitchen Options:

Island

Master Suite Options:

Master on First Floor

Dual Sinks in Master Bath

Enclosed Toilet Room

Separate Tub and Shower

Garage

Garage:

837(with storage)

Garage Stalls:

3

Garage Entry:

Courtyard

Style:

Acadian

European

Traditional

Dimensions

Ridge Height:

ft.:

30

in.:

0

Width:

ft.:

74

in.:

7

Secondary Ceiling Height:

ft.:

10

in.:

0

Depth:

ft.:

94

in.:

9

Main Ceiling Height:

ft.:

11

in.:

0

Wall Framing:

2"x4" studwalls

Roof

Main Roof Slope:

16/12

Roof Material:

Shingles

Roof Framing:

Stick Built

Exterior Materials:

Brick

What's Included:

Cover Sheet

Cross Section{s}

Detailed Floor Plan(s)

Electrical Plans

Exterior Views

Foundation plan

Roof Plan, Birds Eye View

Wall Section(s)

$900.00

SKU: 3RD-06-17

Price: $900.00
