3RD-117-19

Overview

Designer Plan Number:

3RD-117-19

Bedrooms:

4

Bathrooms:

3

Levels:

1

Sq. Ft.

First Floor:

2471

Porches:

283

Total Heated and Cooled:

2560

Total Sq. ft. Under Roof:

3551

Purchase Options

5 sets, +$700.00

9 sets, +$100.00

Mirrored Plan, +$150.00

PDF, +$400.00

•
•

Details

Features

General Options:

Designed for Corner Lot

Designed for Views

Fireplace

Formal Dining

Foyer

Jack-n-Jill Bath

Keeping Room

Storage

Kitchen Options:

Island

Master Suite Options:

Master on First Floor

Enclosed Toilet Room

Separate Tub and Shower

Garage

Garage:

797(including storage)

Garage Stalls:

3

Garage Entry:

Courtyard

Style:

Acadian

European

Traditional

Dimensions

Ridge Height:

ft.:

27

in.:

8

Width:

ft.:

62

in.:

8

Secondary Ceiling Height:

ft.:

10

in.:

0

Depth:

ft.:

92

in.:

2

Main Ceiling Height:

ft.:

12

in.:

0

Wall Framing:

2"x4" studwalls

Roof

Main Roof Slope:

12/12

Roof Material:

Shingles

Exterior Materials:

Brick

Siding

What's Included:

Cover Sheet

Cross Section{s}

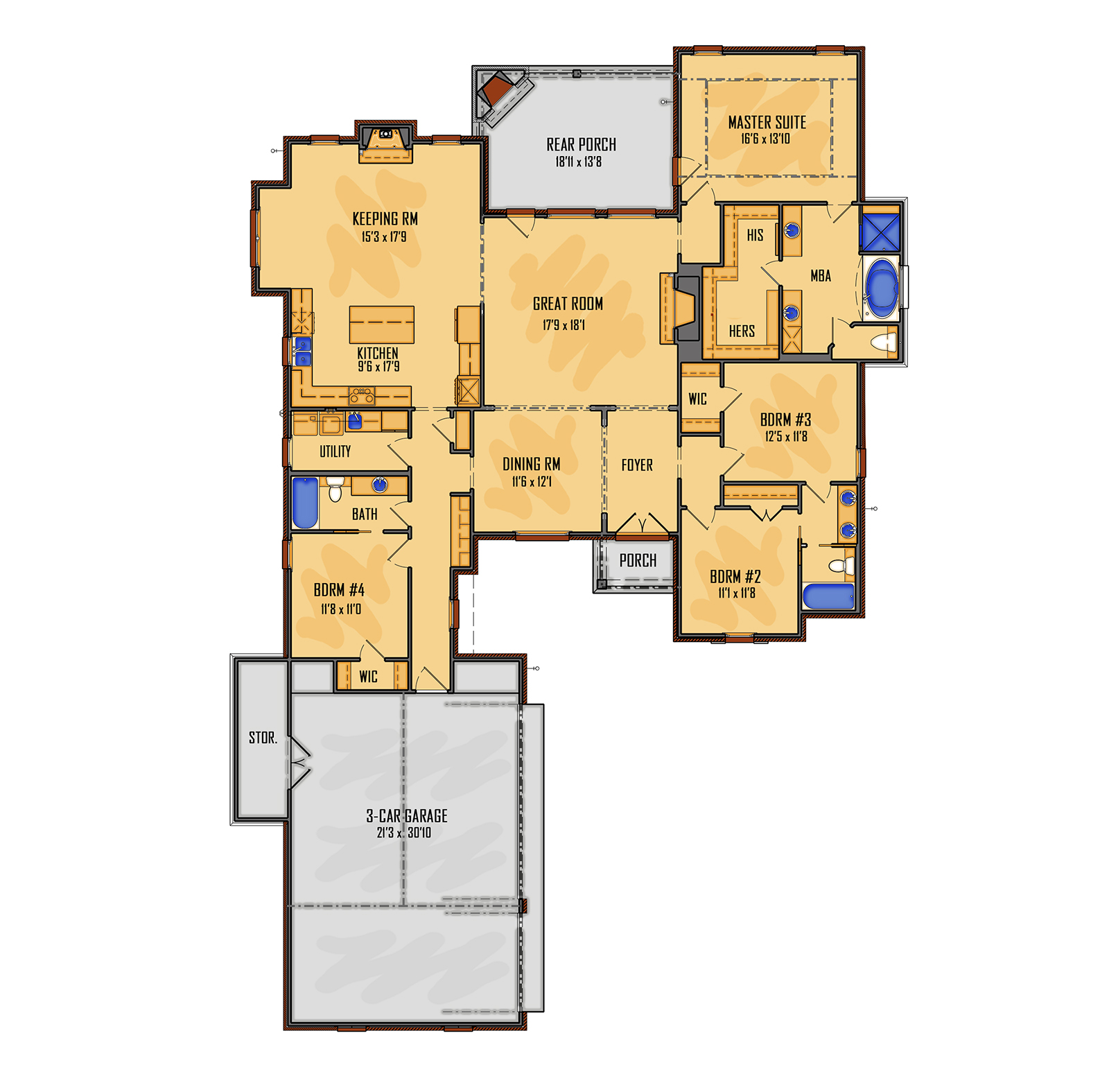

Detailed Floor Plan(s)

Electrical Plans

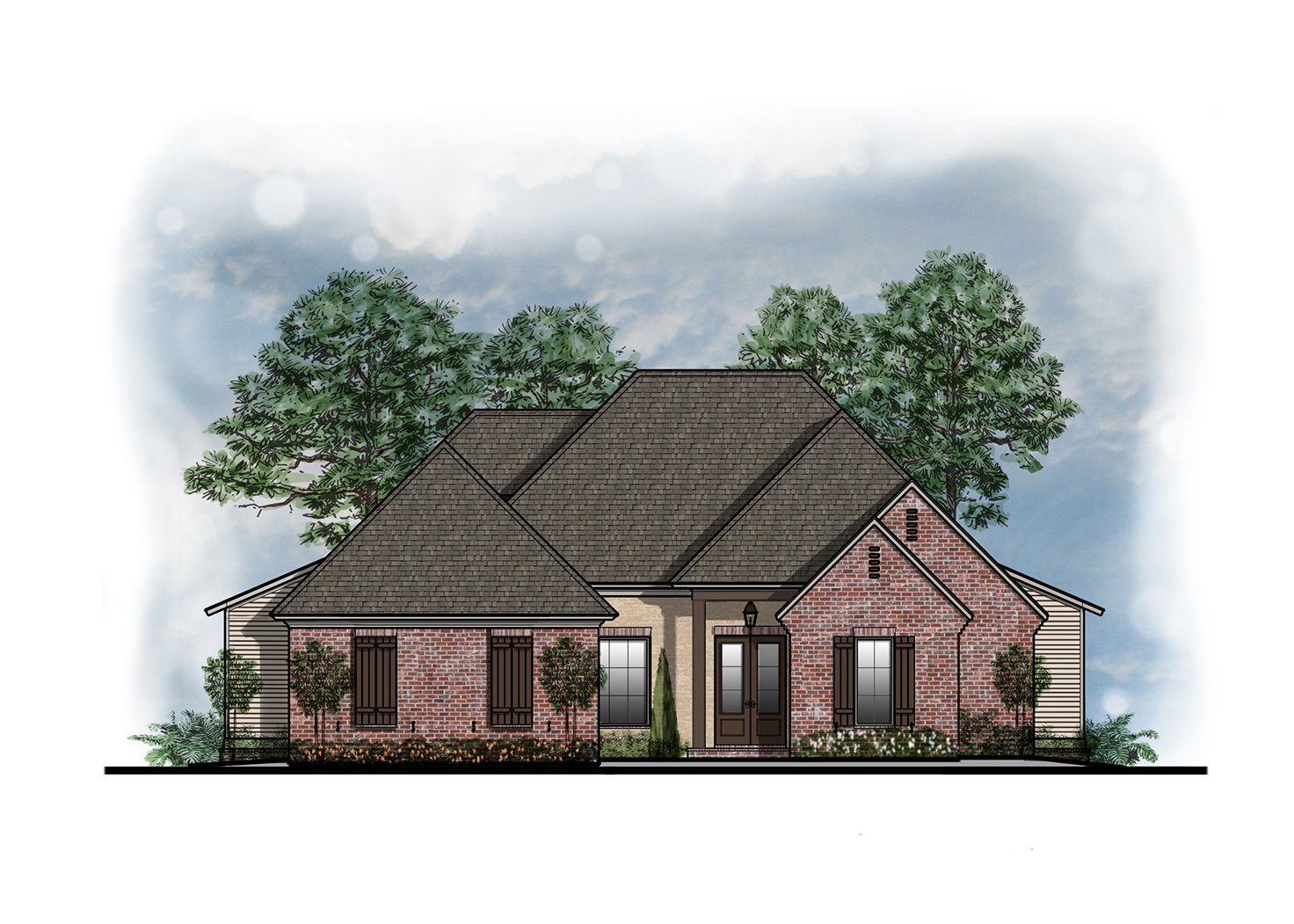

Exterior Views

Foundation plan

Roof Plan, Birds Eye View

Wall Section(s)

$700.00

SKU: 3RD-117-19

Price: $700.00
