3RD-130-16

Overview

Designer Plan Number:

3RD-130-16

Bedrooms:

4

Bathrooms:

4

1/2 Bathrooms :

1

Levels:

1.5

Sq. Ft.

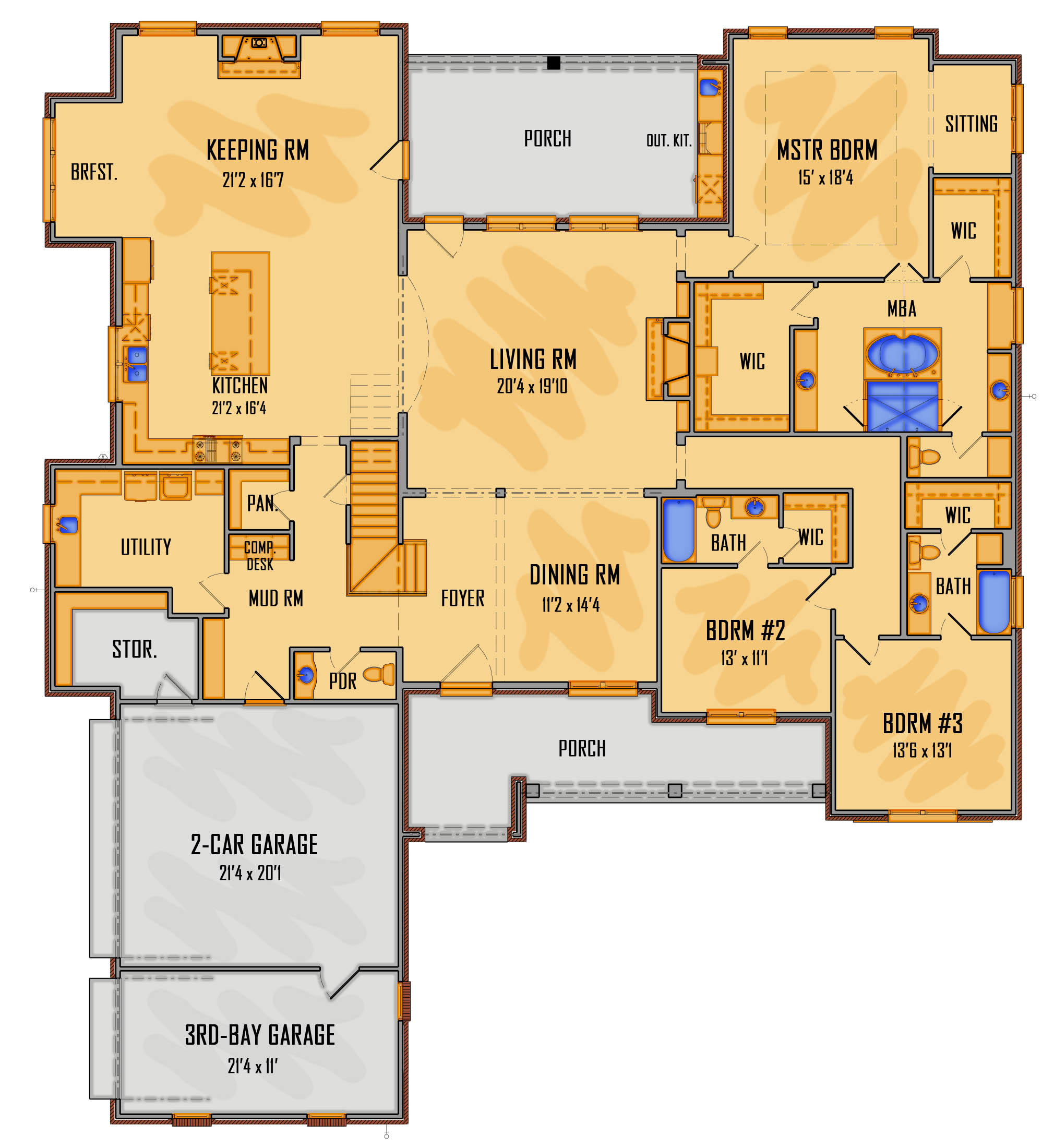

First Floor:

3361

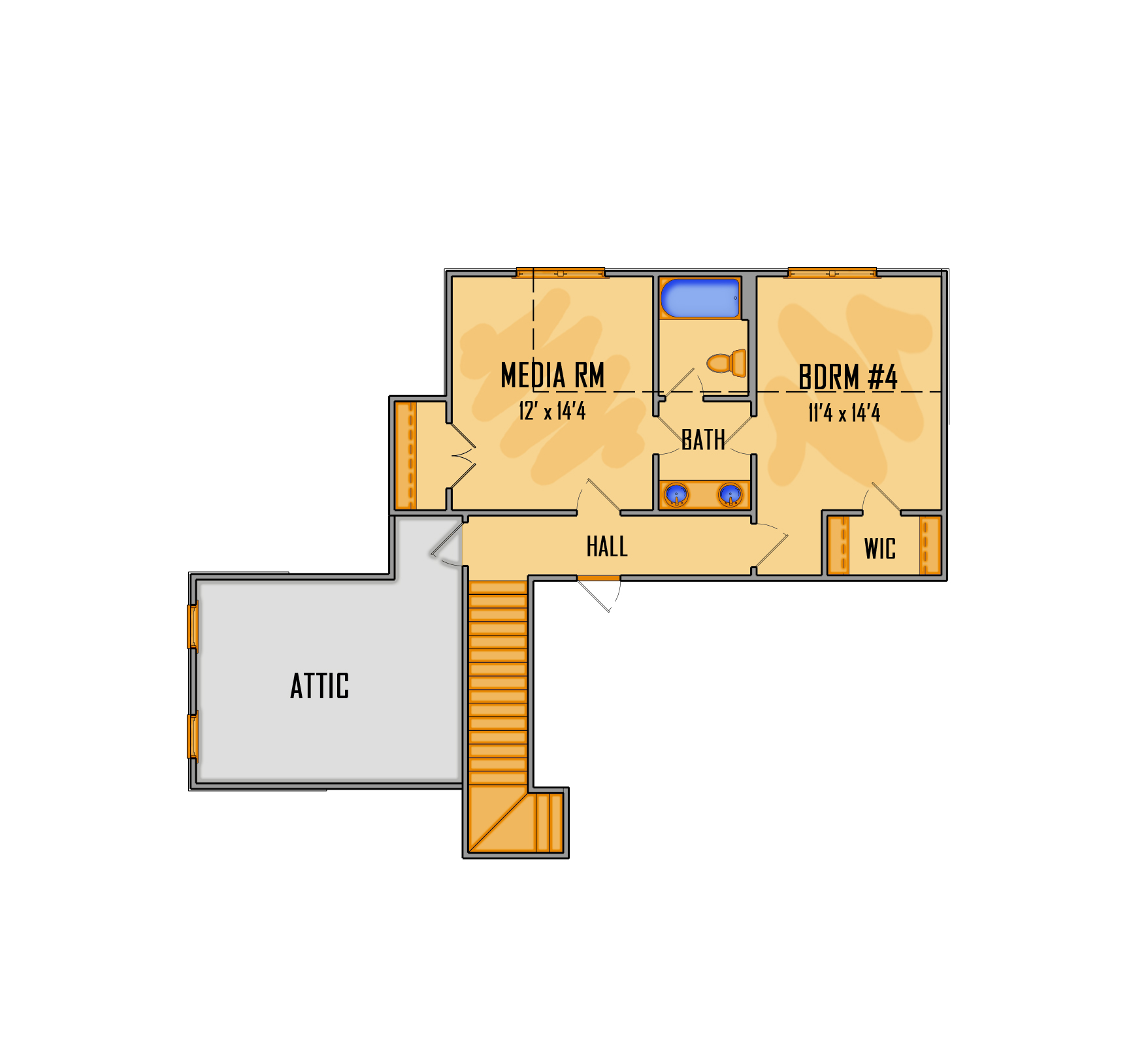

Second Floor:

629

Porches:

570

Total Heated and Cooled:

4080

Total Sq. ft. Under Roof:

5347

Purchase Options

5 Sets, +$1,500.00

9 sets, +$100.00

Mirrored Plan, +$225.00

PDF, +$400.00

•
•
•
•
•
•
•
•
•
•
•
•
•
•

Details

Features

General Options:

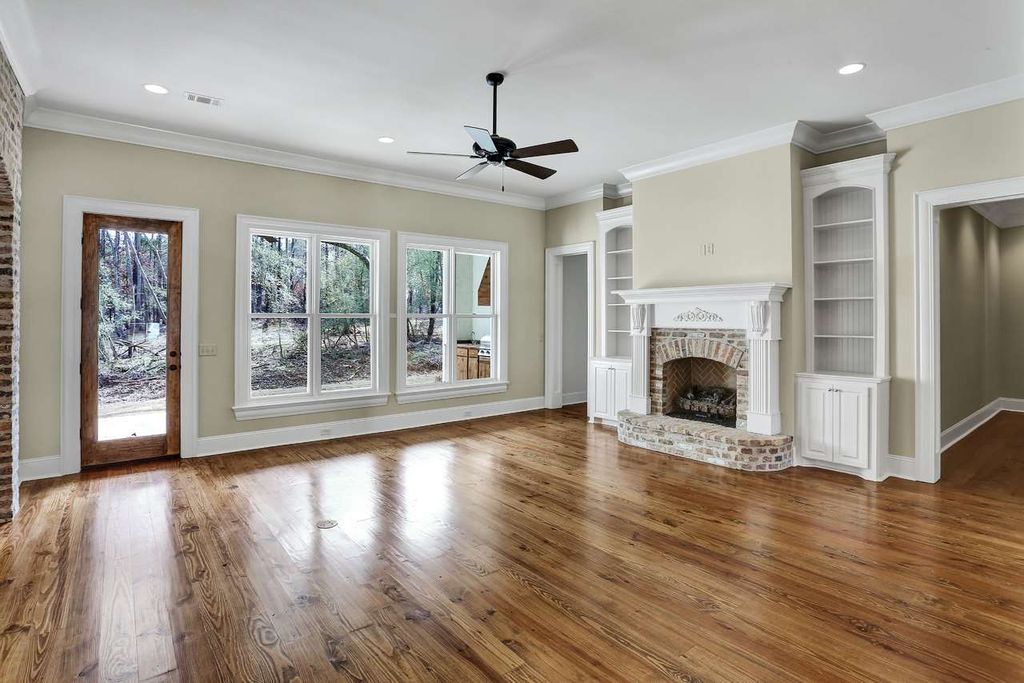

Fireplace

Flex Space

Formal Dining

Foyer

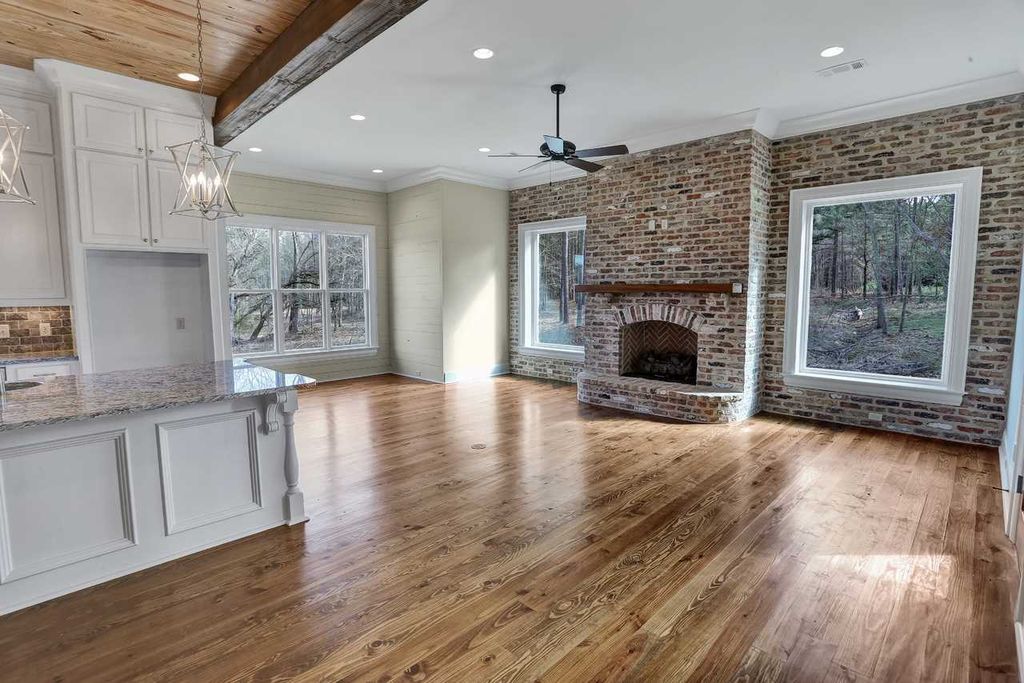

Keeping Room

Media Room

Mud Room

Office

Open Floor Plan

Specialty Ceilings

Storage

Walk-in Closets

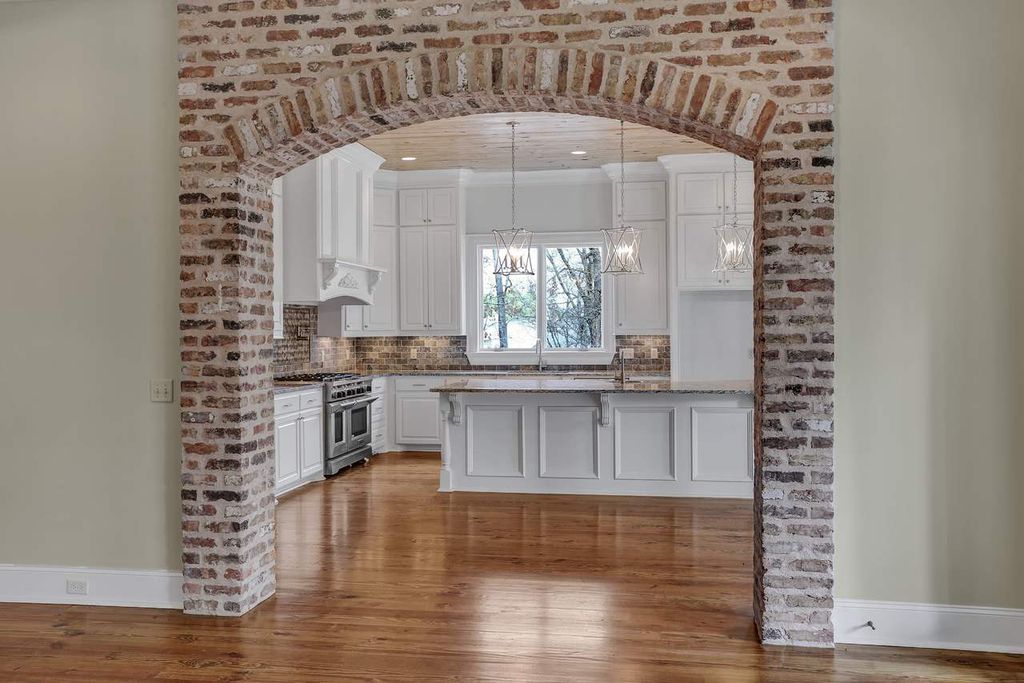

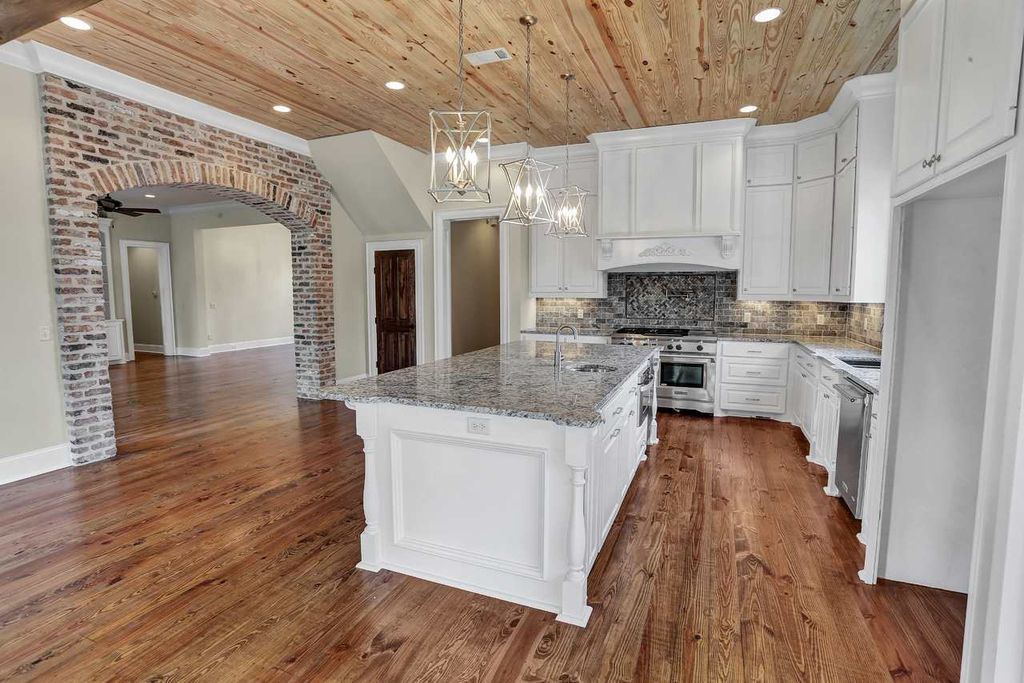

Kitchen Options:

Eating Bar in Kitchen

Island

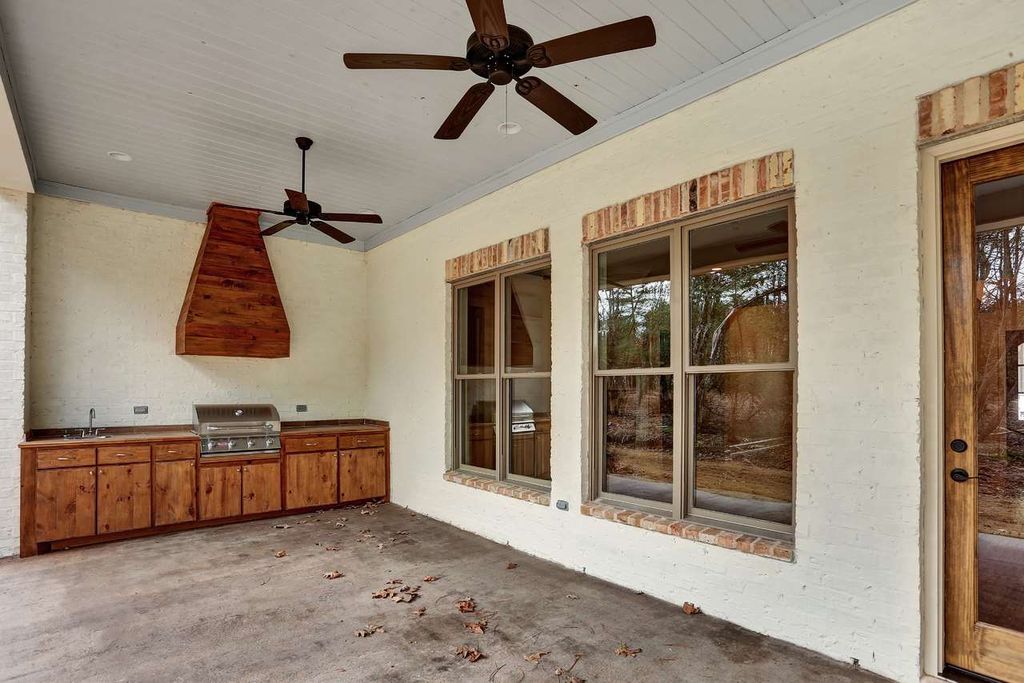

Outdoor Kitchen

Walk-in Pantry

Master Suite Options:

Master on First Floor

Enclosed Toilet Room

His & Her Baths

His & Her Closets

Separate Tub and Shower

Sitting Area

Garage

Garage:

787 (Including Storage)

Garage Stalls:

3

Garage Entry:

Side

Style:

Acadian

European

French Country

Dimensions

Ridge Height:

ft.:

35

in.:

10

Width:

ft.:

74

in.:

10

Secondary Ceiling Height:

ft.:

10

in.:

0

Depth:

ft.:

84

in.:

4

Main Ceiling Height:

ft.:

11

in.:

0

Wall Framing:

2"x4" studwalls

Roof

Main Roof Slope:

12/12

Roof Material:

Shingles

Roof Framing:

Stick Built

Exterior Materials:

Brick

Siding

What's Included:

Cover Sheet

Cross Section{s}

Detailed Floor Plan(s)

Electrical Plans

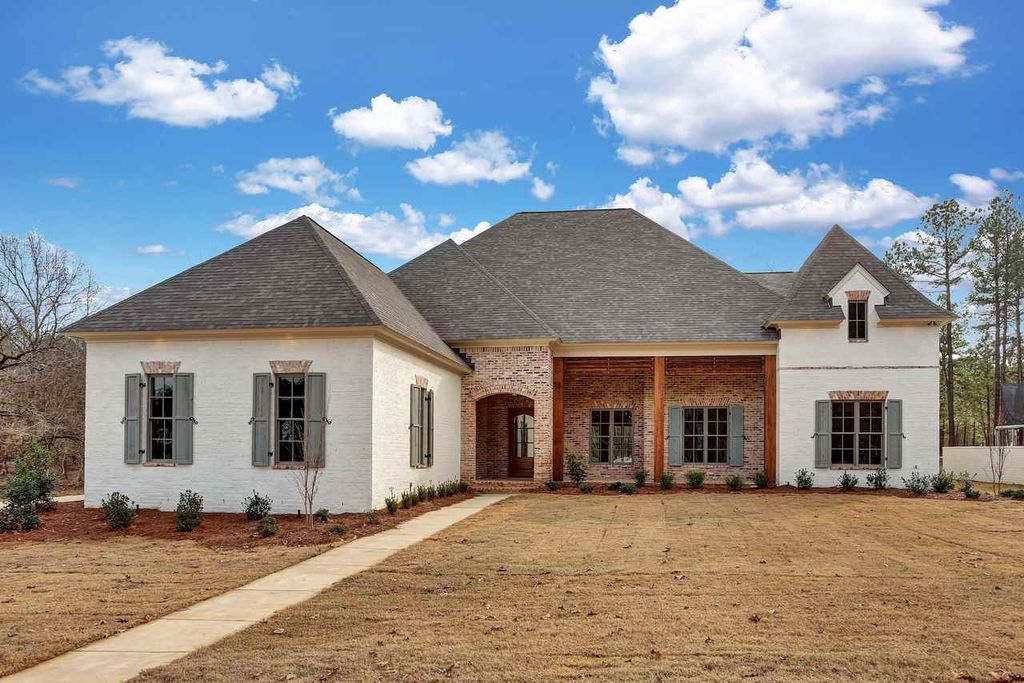

Exterior Views

Foundation plan

Roof Plan, Birds Eye View

Wall Section(s)

$1,500.00

SKU: 3RD-130-16

Price: $1,500.00
