3RD-166-13

Overview

Designer Plan Number:

3RD-166-13

Bedrooms:

4

Bathrooms:

4

1/2 Bathrooms :

1

Levels:

2

Sq. Ft.

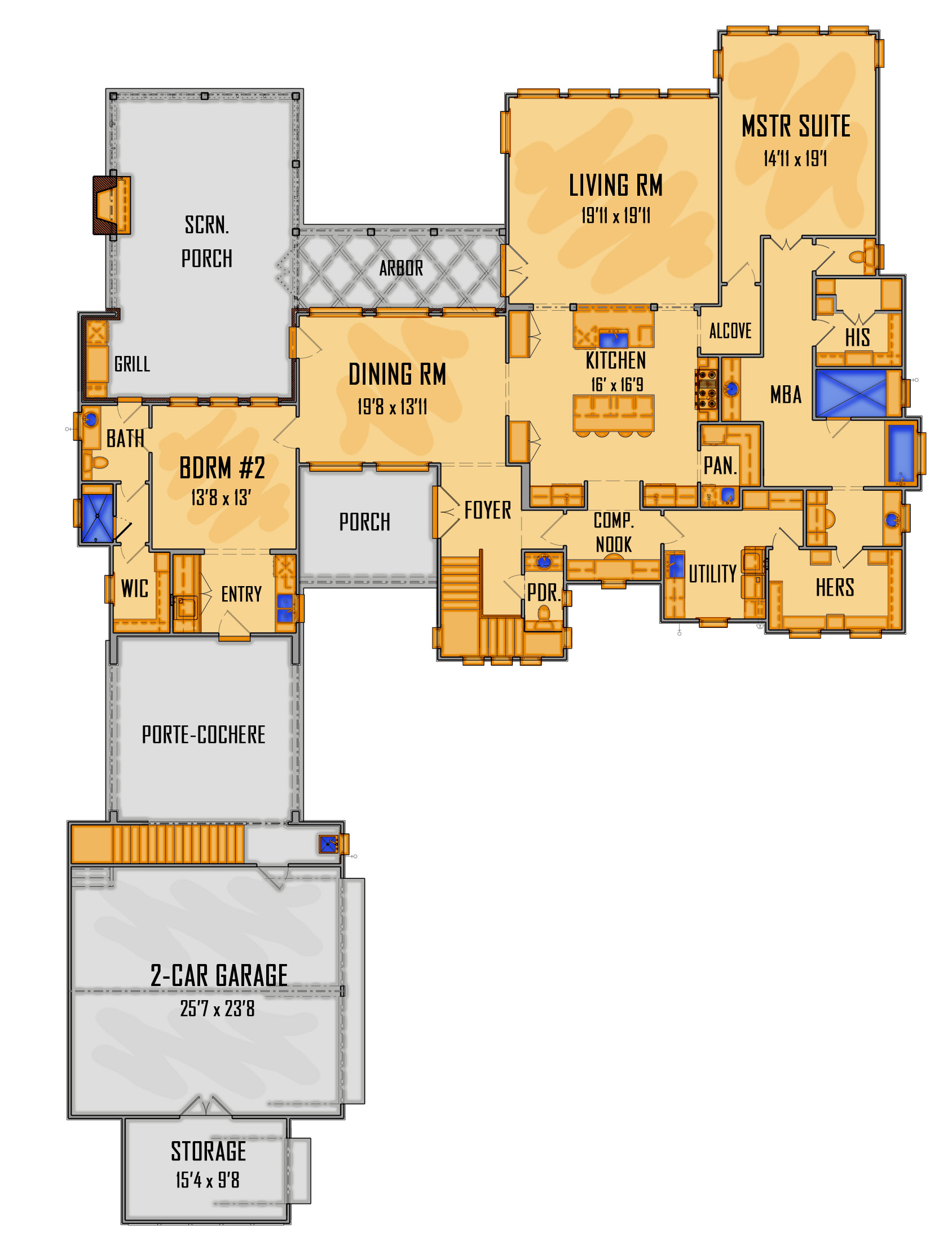

First Floor:

2831

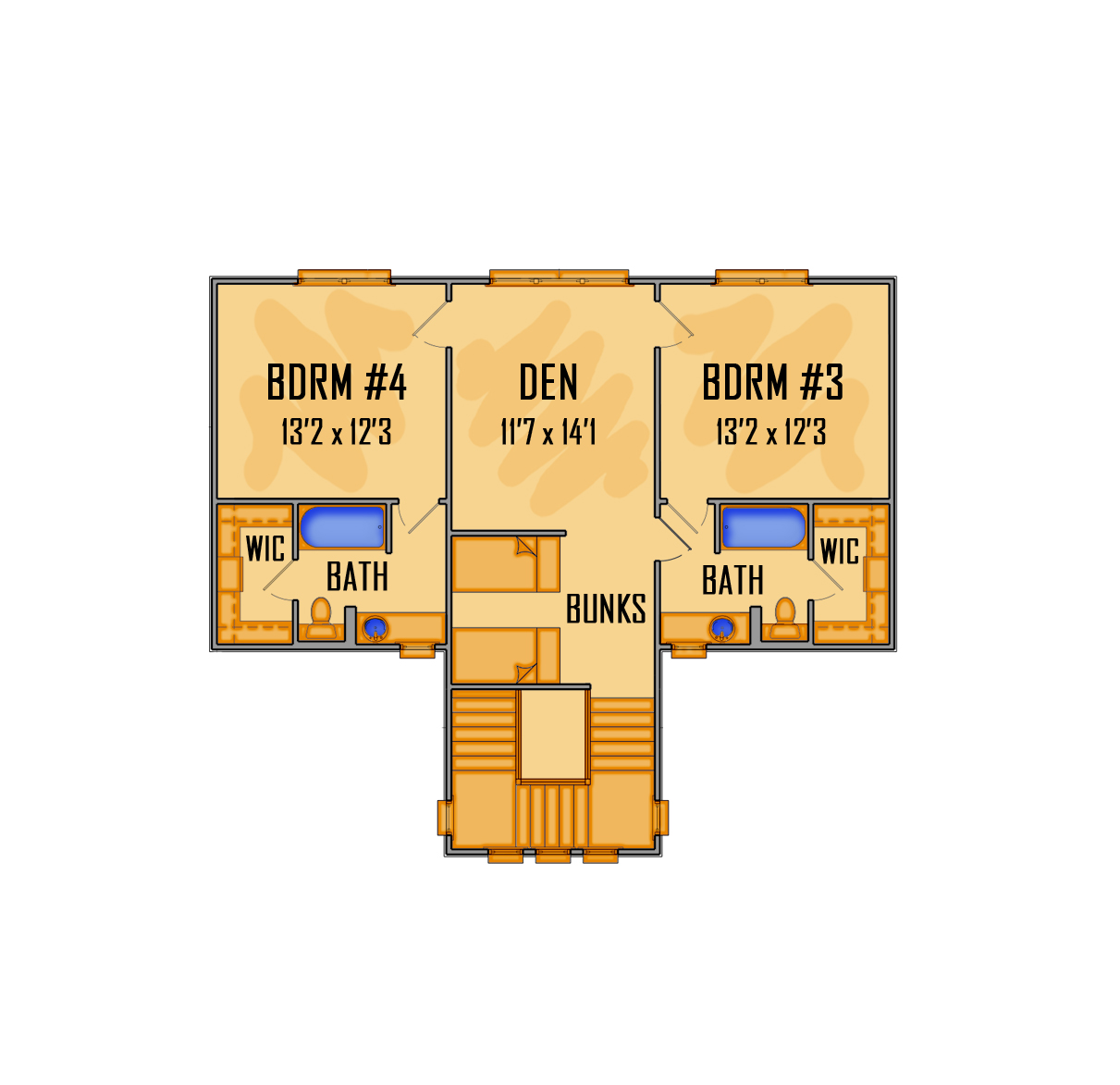

Second Floor:

866

Porches:

708

Total Heated and Cooled:

3753

Total Sq. ft. Under Roof:

5325

Purchase Options

5 Sets, +$1,200.00

9 sets, +$100.00

Mirrored Plan, +$225.00

PDF, +$400.00

•
•
•

Details

Features

General Options:

Designed for Views

Flex Space

Formal Dining

Foyer

Loft

Mud Room

Office

Open Floor Plan

Storage

Two Living Areas

Walk-in Closets

Workshop

Kitchen Options:

Butler's Pantry

Eating Bar in Kitchen

Island

Outdoor Kitchen

Walk-in Pantry

Wet Bar

Master Suite Options:

Master on First Floor

Enclosed Toilet Room

His & Her Baths

His & Her Closets

Separate Tub and Shower

Sitting Area

Garage

Garage:

1220 (Including Storage)

Garage Stalls:

2

Garage Entry:

Courtyard

Style:

Contemporary

Craftsman

Farmhouse

Dimensions

Ridge Height:

ft.:

31

in.:

11

Width:

ft.:

82

in.:

2

Secondary Ceiling Height:

ft.:

9

in.:

0

Depth:

ft.:

114

in.:

6

Main Ceiling Height:

ft.:

11

in.:

0

Wall Framing:

2"x4" studwalls

Roof

Main Roof Slope:

10/12

Roof Material:

Shingles

Roof Framing:

Stick Built

Exterior Materials:

Brick

Siding

What's Included:

Cover Sheet

Cross Section{s}

Detailed Floor Plan(s)

Electrical Plans

Exterior Views

Foundation plan

Roof Plan, Birds Eye View

Wall Section(s)

$1,200.00

SKU: 3RD-166-13

Price: $1,200.00
