3RD-172-12

Overview

Designer Plan Number:
3RD-172-12
Bedrooms:
4
Bathrooms:
3
Levels:
1

Sq. Ft.

First Floor:
2338
Porches:
342
Total Heated and Cooled:
2438
Total Sq. ft. Under Roof:
3566

Details

Features

General Options:
Fireplace
Flex Space
Foyer
Jack-n-Jill Bath
Keeping Room
Mud Room
Office
Open Floor Plan
Storage
Walk-in Closets
Kitchen Options:
Double Ovens
Eating Bar in Kitchen
Island
Walk-in Pantry
Master Suite Options:
Master on First Floor
Enclosed Toilet Room
His & Her Baths
Separate Tub and Shower

Garage

Garage:
886 (Including Storage)
Garage Stalls:
3
Garage Entry:
Courtyard
Style:
Courtyard
French
Traditional

Dimensions

Ridge Height:
ft.:
32
in.:
4
Width:
ft.:
66
in.:
1
Secondary Ceiling Height:
ft.:
9
in.:
0
Depth:
ft.:
85
in.:
10
Main Ceiling Height:
ft.:
11
in.:
0
Wall Framing:
2"x4" studwalls

Roof

Main Roof Slope:
12/12
Roof Material:
Shingles
Roof Framing:
Stick Built
Exterior Materials:
Brick
What's Included:
Cover Sheet
Cross Section{s}

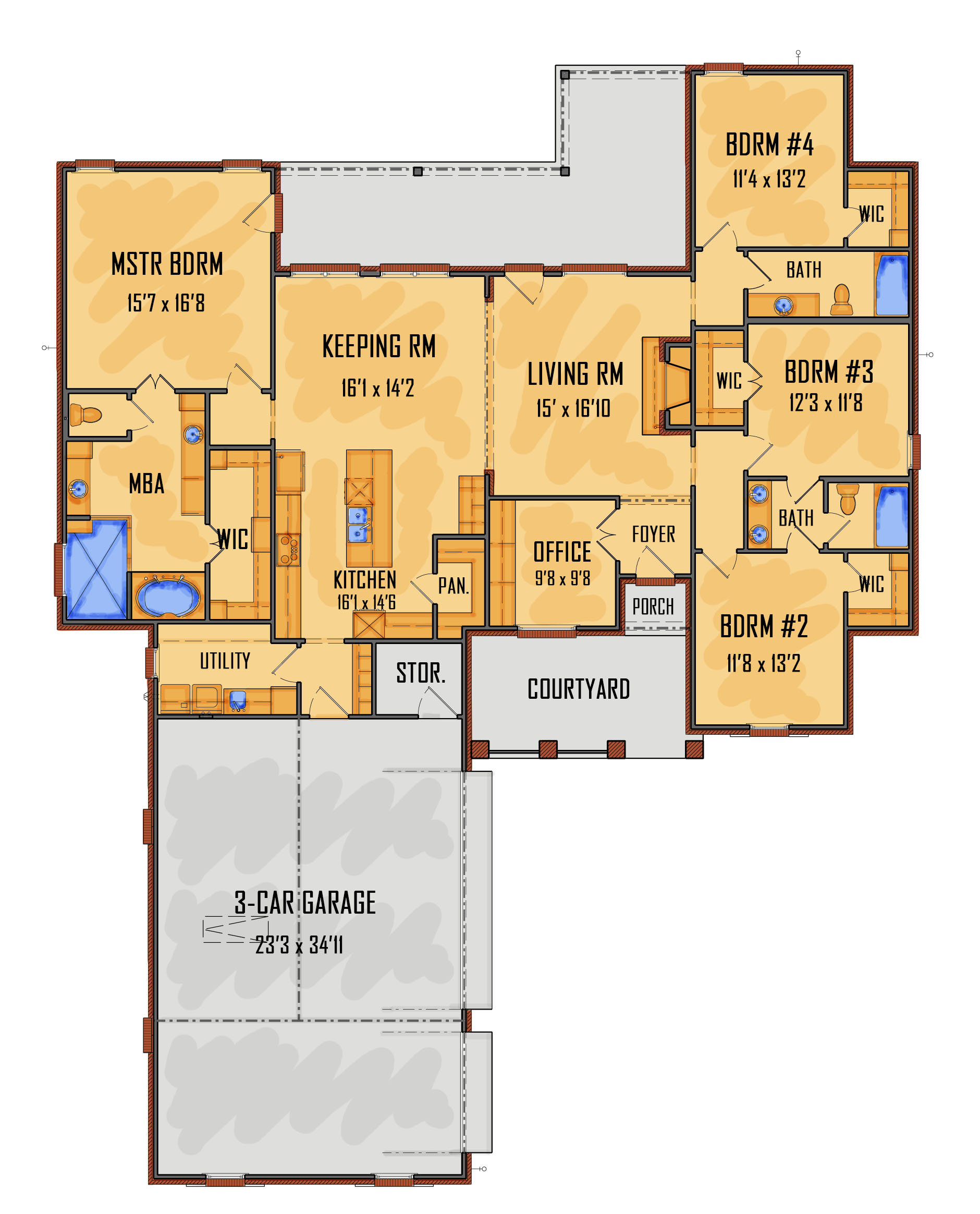

Detailed Floor Plan(s)
Electrical Plans

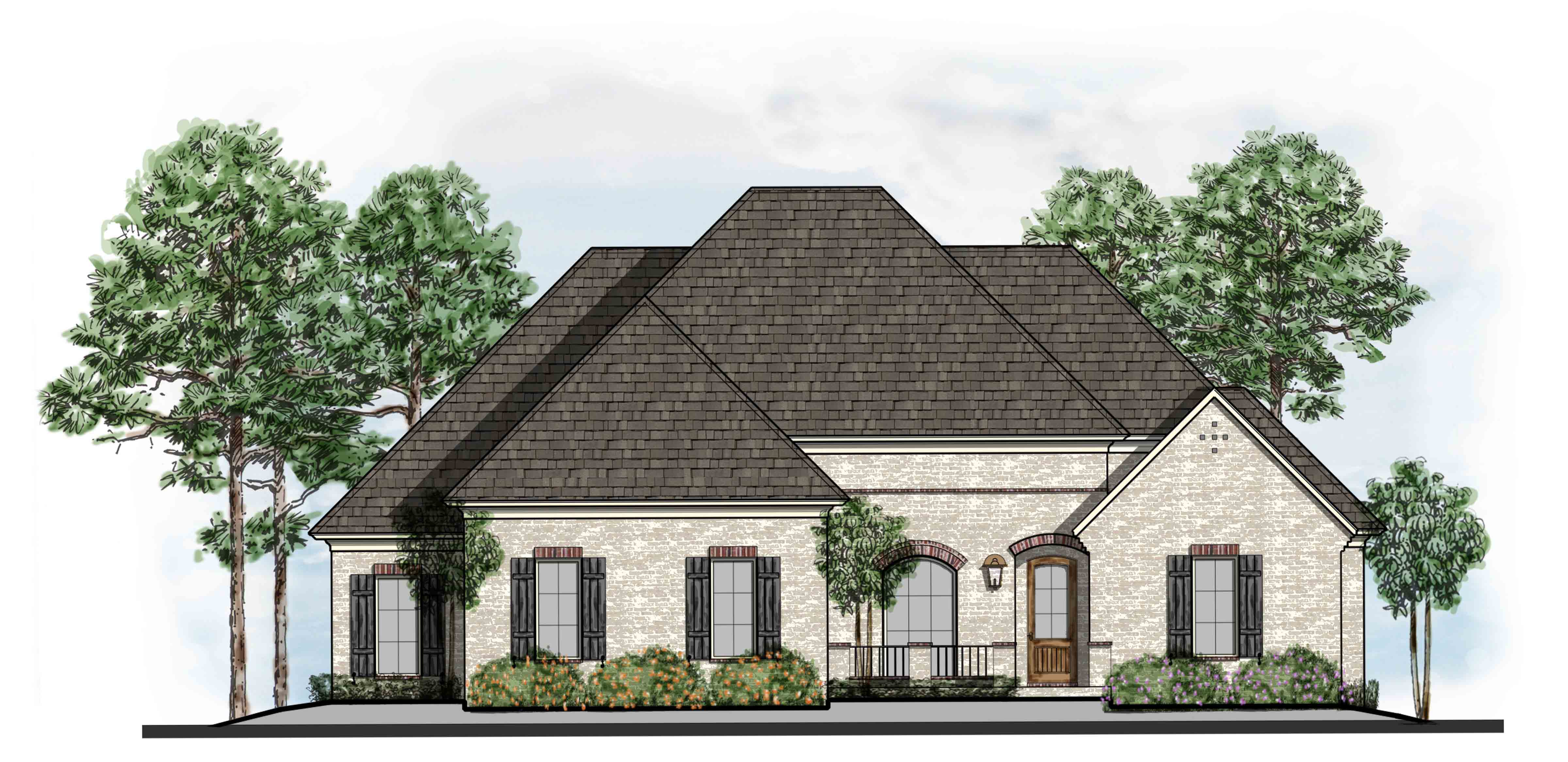

Exterior Views
Foundation plan
Roof Plan, Birds Eye View
Wall Section(s)
$600.00
SKU: 3RD-172-12
Price: $600.00
