3RD-193-17

Overview

Designer Plan Number:

3RD-193-17

Bedrooms:

4

Bathrooms:

3

Levels:

1.5

Sq. Ft.

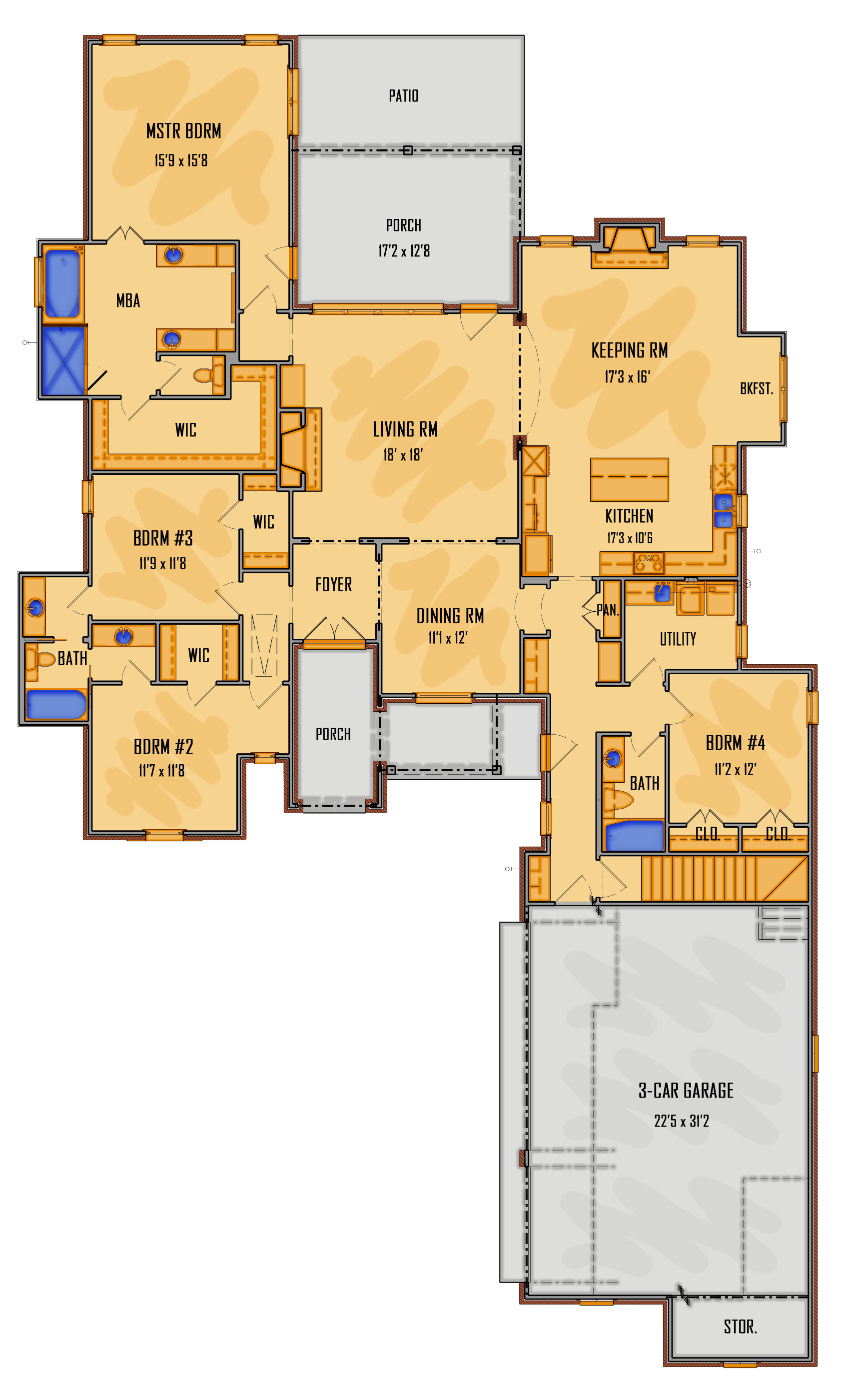

First Floor:

2654

Porches:

382

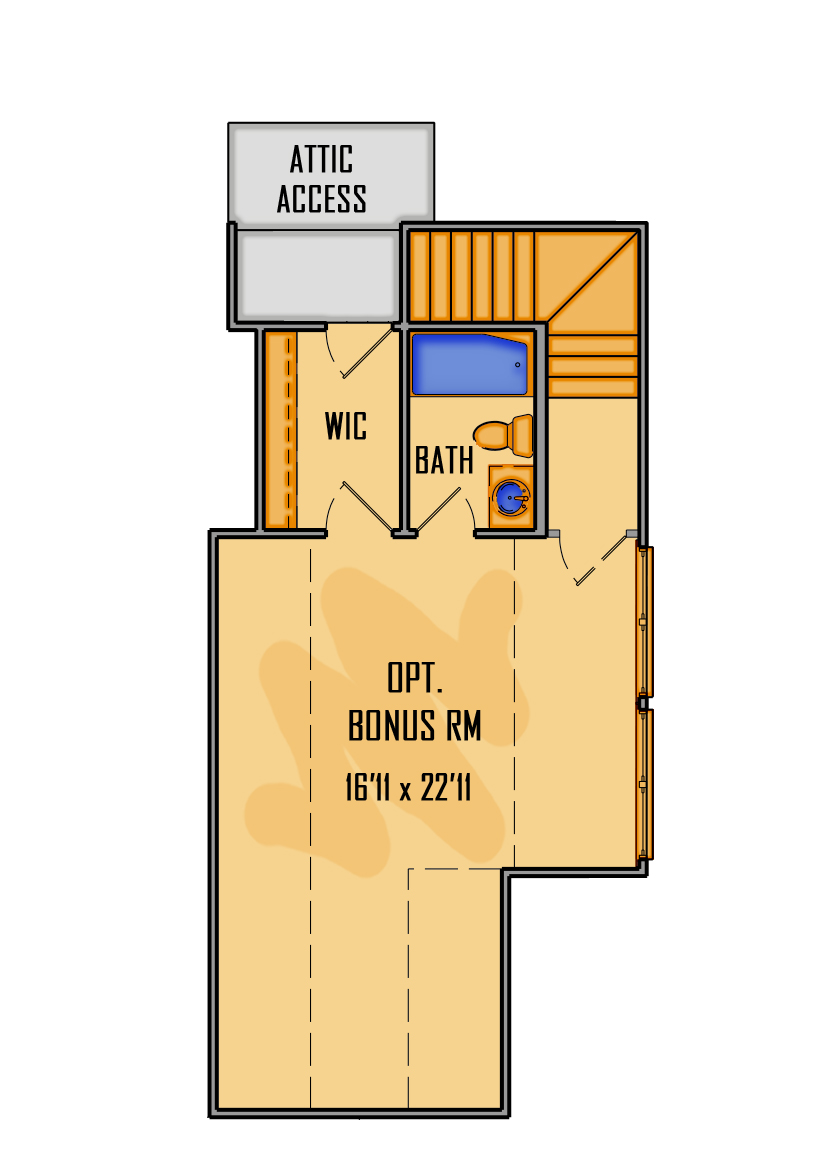

Bonus Room:

527

Total Heated and Cooled:

2767

Total Sq. ft. Under Roof:

3886

Purchase Options

5 sets, +$700.00

9 sets, +$100.00

Mirrored Plan, +$150.00

PDF, +$400.00

•
•
•
•

Details

Features

General Options:

Bonus Room

Fireplace

Flex Space

Formal Dining

Foyer

Jack-n-Jill Bath

Keeping Room

Mud Room

Office

Storage

Walk-in Closets

Kitchen Options:

Double Ovens

Eating Bar in Kitchen

Island

Master Suite Options:

Master on First Floor

Enclosed Toilet Room

His & Her Baths

Separate Tub and Shower

Garage

Garage:

850 (Including Storage)

Garage Stalls:

3

Garage Entry:

Courtyard

Style:

Acadian

French Country

Traditional

Dimensions

Ridge Height:

ft.:

27

in.:

1

Width:

ft.:

64

in.:

4

Secondary Ceiling Height:

ft.:

8

in.:

0

Depth:

ft.:

106

in.:

7

Main Ceiling Height:

ft.:

11

in.:

0

Wall Framing:

2"x4" studwalls

Roof

Main Roof Slope:

16/12

Roof Material:

Shingles

Roof Framing:

Stick Built

Exterior Materials:

Brick

Siding

What's Included:

Cover Sheet

Cross Section{s}

Detailed Floor Plan(s)

Electrical Plans

Exterior Views

Foundation plan

Roof Plan, Birds Eye View

Wall Section(s)

$700.00

SKU: 3RD-193-17

Price: $700.00
