3RD-316-16

Overview

Designer Plan Number:

3RD-316-16

Bedrooms:

4

Bathrooms:

3

Levels:

1.5

Sq. Ft.

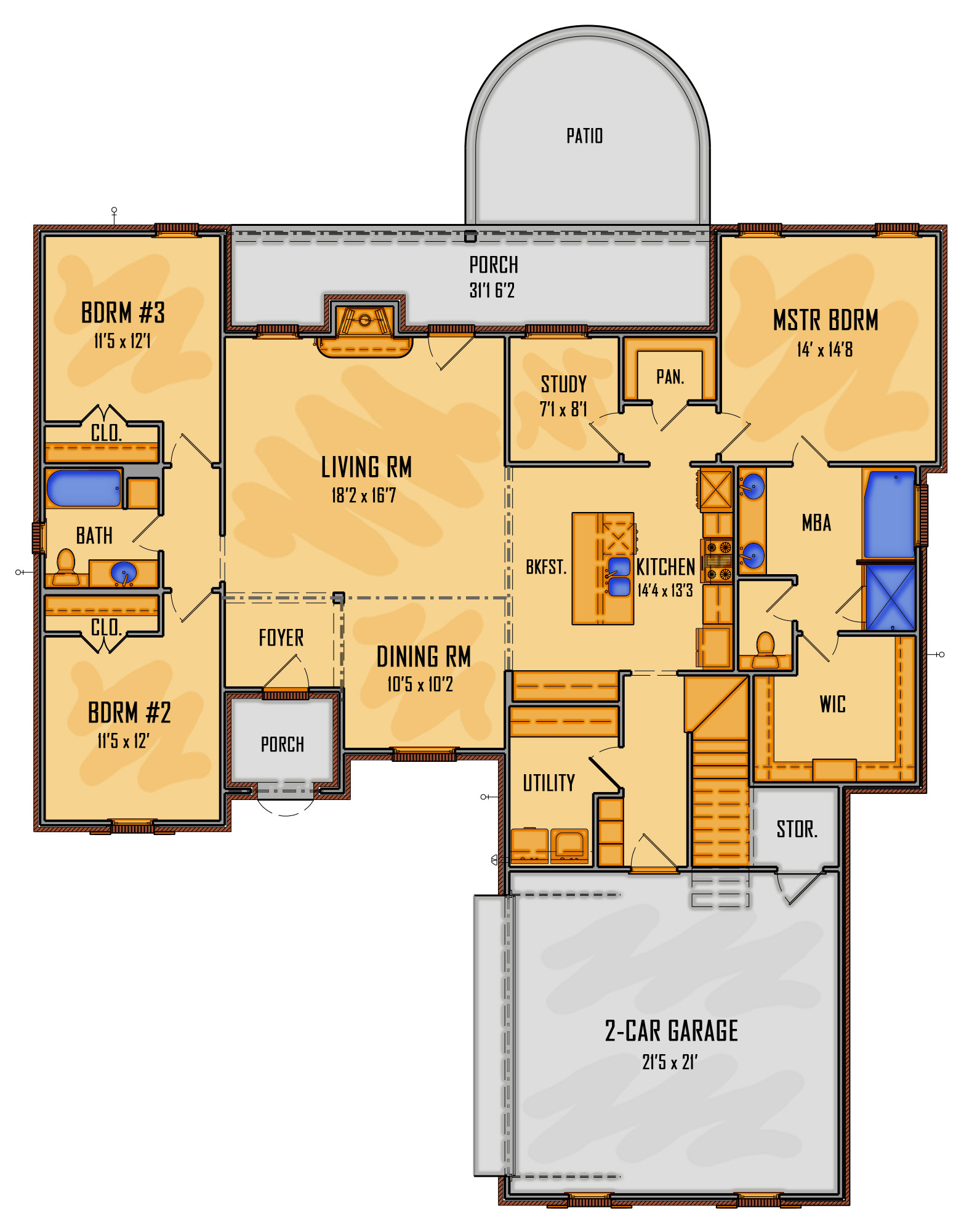

First Floor:

1904

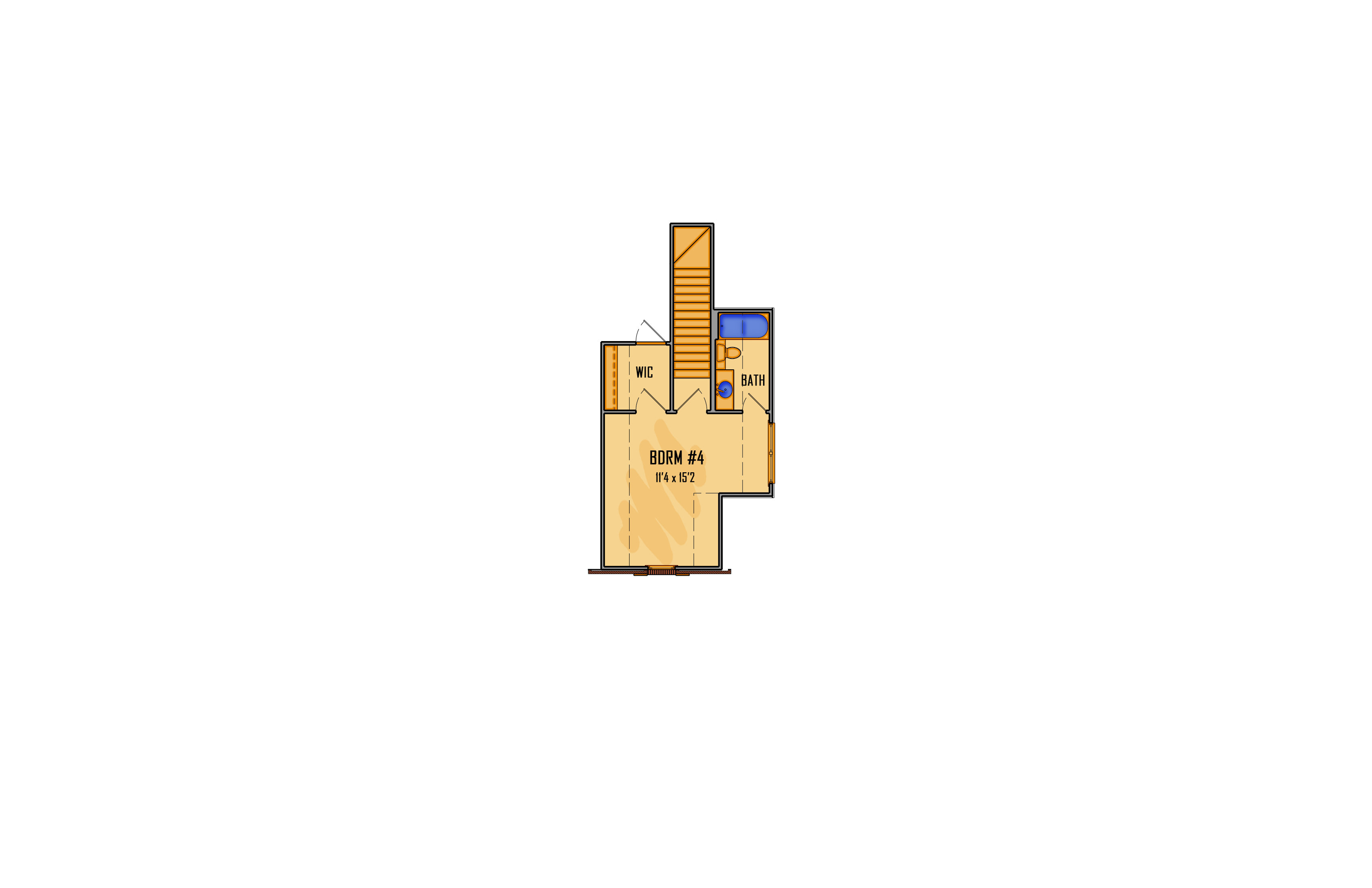

Second Floor:

380

Porches:

252

Total Heated and Cooled:

2369

Total Sq. ft. Under Roof:

3059

Purchase Options

5 Sets, +$600.00

9 sets, +$100.00

Mirrored Plan, +$150.00

PDF, +$400.00

•
•
•

Details

Features

General Options:

Fireplace

Formal Dining

Foyer

Jack-n-Jill Bath

Mud Room

Office

Storage

Walk-in Closets

Kitchen Options:

Double Ovens

Eating Bar in Kitchen

Island

Walk-in Pantry

Master Suite Options:

Master on First Floor

Dual Sinks in Master Bath

Enclosed Toilet Room

Separate Tub and Shower

Garage

Garage:

523 (Including Storage)

Garage Stalls:

2

Garage Entry:

Courtyard

Style:

Acadian

French Country

Traditional

Dimensions

Ridge Height:

ft.:

26

in.:

4

Width:

ft.:

59

in.:

4

Secondary Ceiling Height:

ft.:

9

in.:

0

Depth:

ft.:

63

in.:

9

Main Ceiling Height:

ft.:

10

in.:

0

Wall Framing:

2"x4" studwalls

Roof

Main Roof Slope:

12/12

Roof Material:

Shingles

Roof Framing:

Stick Built

Exterior Materials:

Brick

Siding

What's Included:

Cover Sheet

Cross Section{s}

Detailed Floor Plan(s)

Electrical Plans

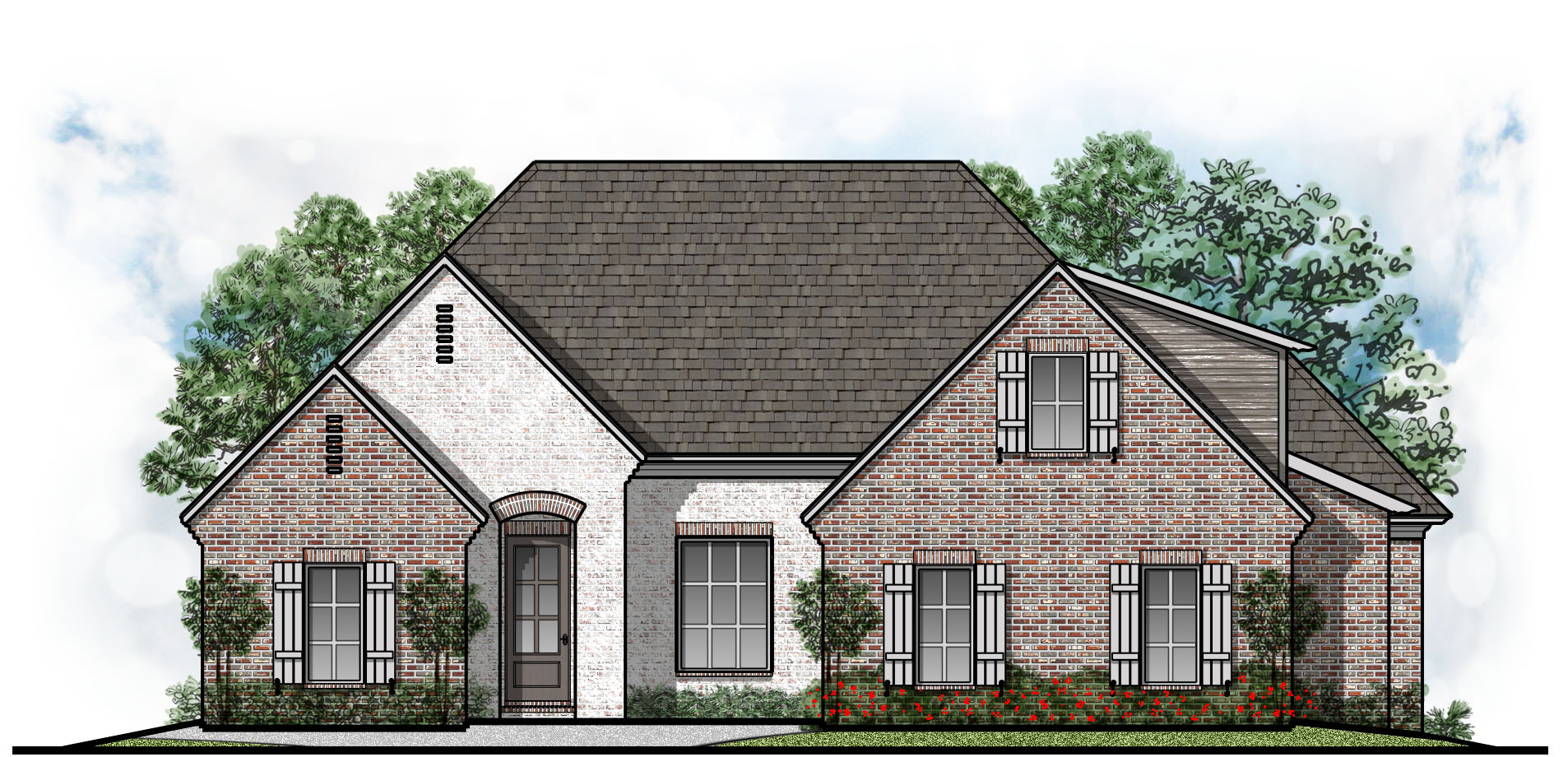

Exterior Views

Foundation plan

Roof Plan, Birds Eye View

Wall Section(s)

$600.00

SKU: 3RD-316-16

Price: $600.00
