3RD-62-16

Overview

Designer Plan Number:

3RD-62-16

Bedrooms:

4

Bathrooms:

3

1/2 Bathrooms :

1

Levels:

1.5

Sq. Ft.

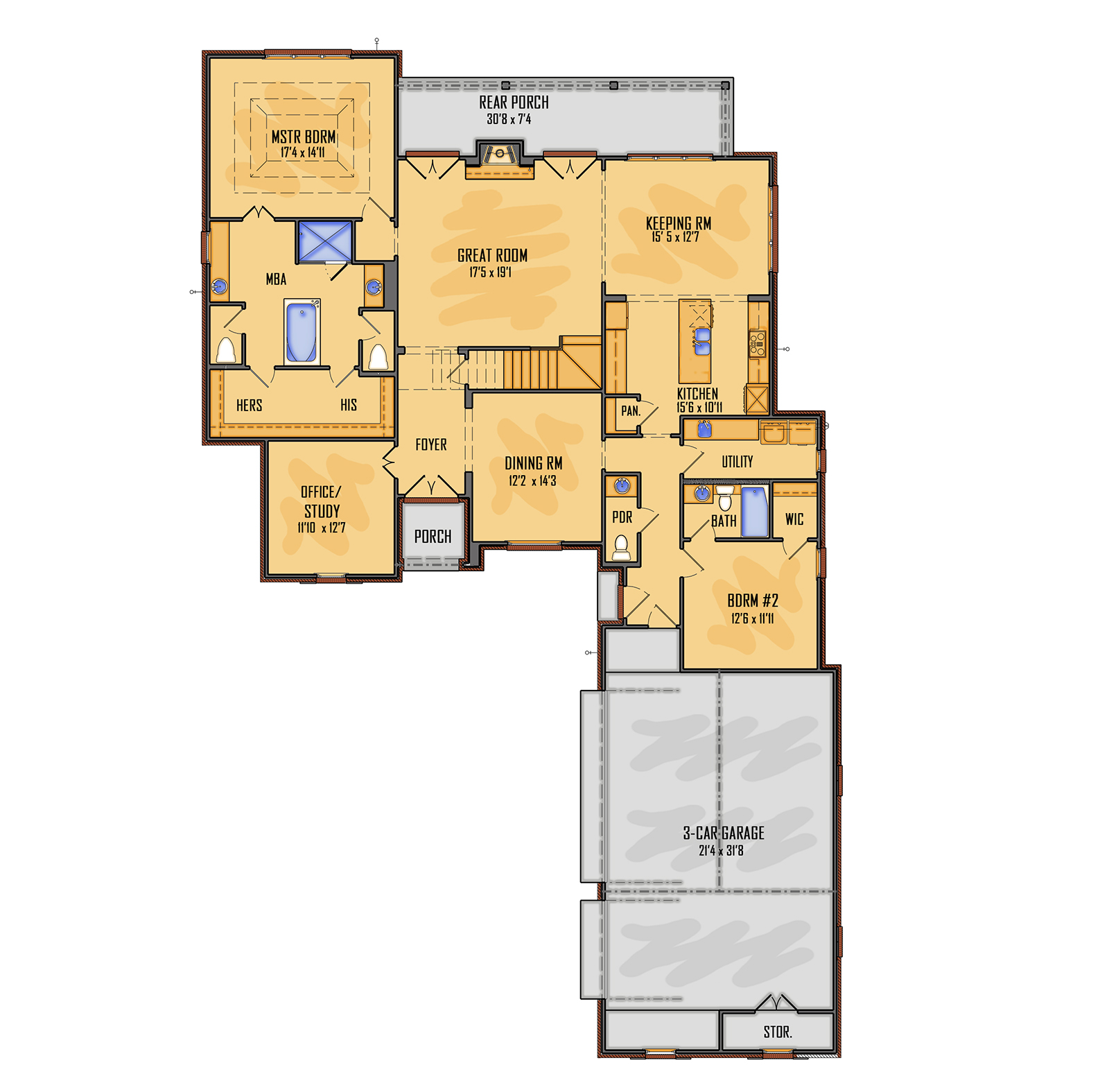

First Floor:

2317

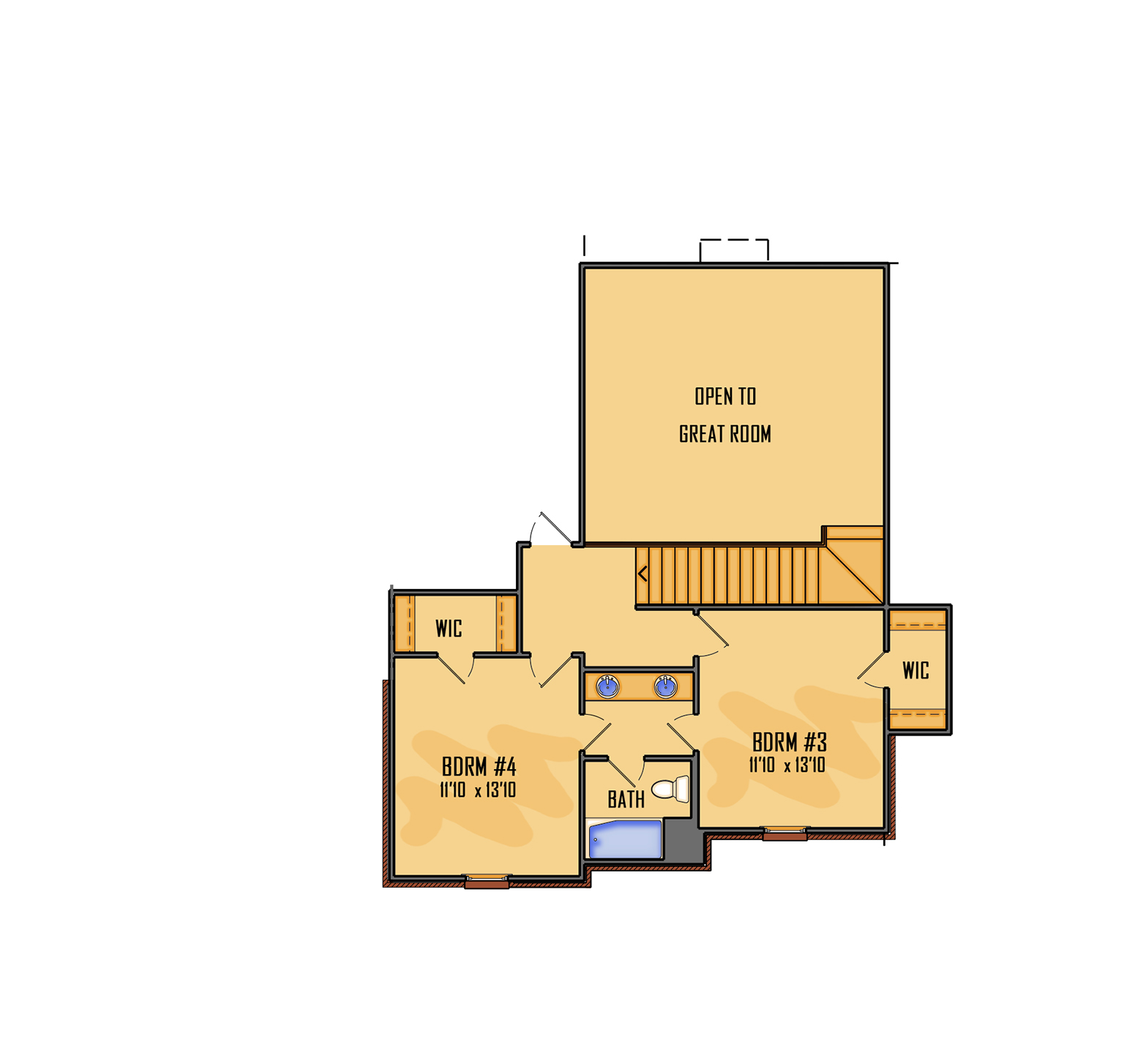

Second Floor:

608

Porches:

283

Total Heated and Cooled:

3001

Total Sq. ft. Under Roof:

4024

Purchase Options

5 Sets, +$900.00

9 sets, +$100.00

Mirrored Plan, +$225.00

PDF, +$400.00

•
•
•

Details

Features

General Options:

Designed for Corner Lot

Designed for Views

Foyer

Jack-n-Jill Bath

Keeping Room

Office

One Eating Area

Specialty Ceilings

Split Plan

Kitchen Options:

Island

Walk-in Pantry

Master Suite Options:

Master on First Floor

Dual Sinks in Master Bath

Enclosed Toilet Room

Separate Tub and Shower

Garage

Garage:

816(with storage)

Garage Stalls:

3

Garage Entry:

Courtyard

Style:

Acadian

French Country

Traditional

Dimensions

Ridge Height:

ft.:

35'

in.:

8

Width:

ft.:

59

in.:

11

Secondary Ceiling Height:

ft.:

9

in.:

0

Depth:

ft.:

94

in.:

6

Main Ceiling Height:

ft.:

10

in.:

0

Wall Framing:

2"x4" studwalls

Roof

Main Roof Slope:

12/12

Roof Material:

Shingles

Roof Framing:

Stick Built

Exterior Materials:

Brick

What's Included:

Cover Sheet

Cross Section{s}

Detailed Floor Plan(s)

Electrical Plans

Exterior Views

Foundation plan

Roof Plan, Birds Eye View

Wall Section(s)

$900.00

SKU: 3RD-62-16

Price: $900.00
