3RD-87-16

Overview

Designer Plan Number:

3RD-87-16

Bedrooms:

4

Bathrooms:

4

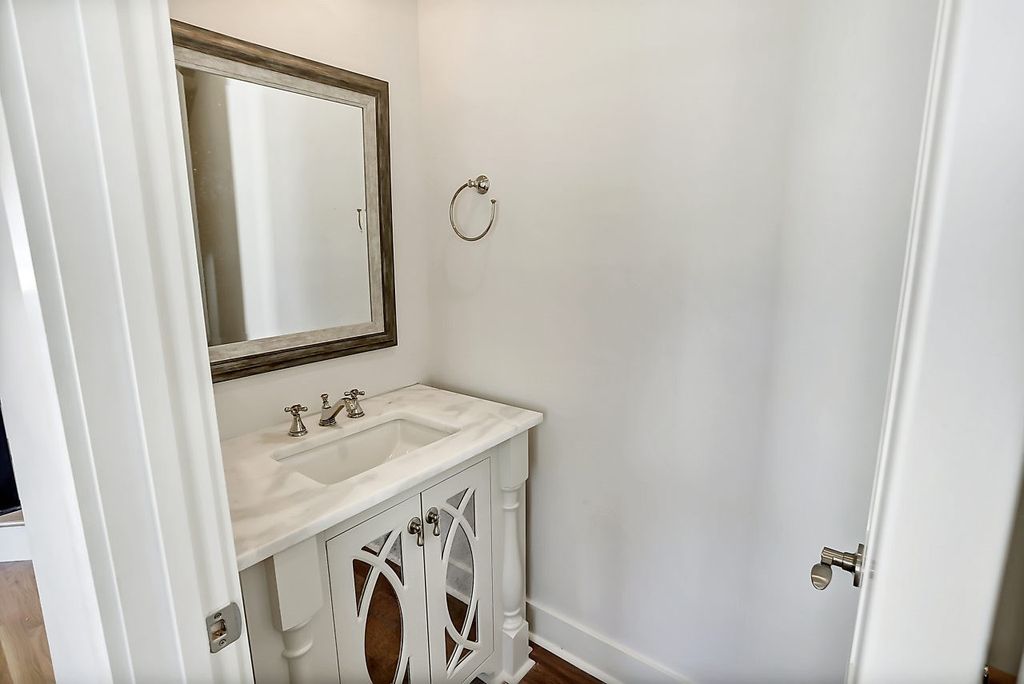

1/2 Bathrooms :

1

Levels:

2

Sq. Ft.

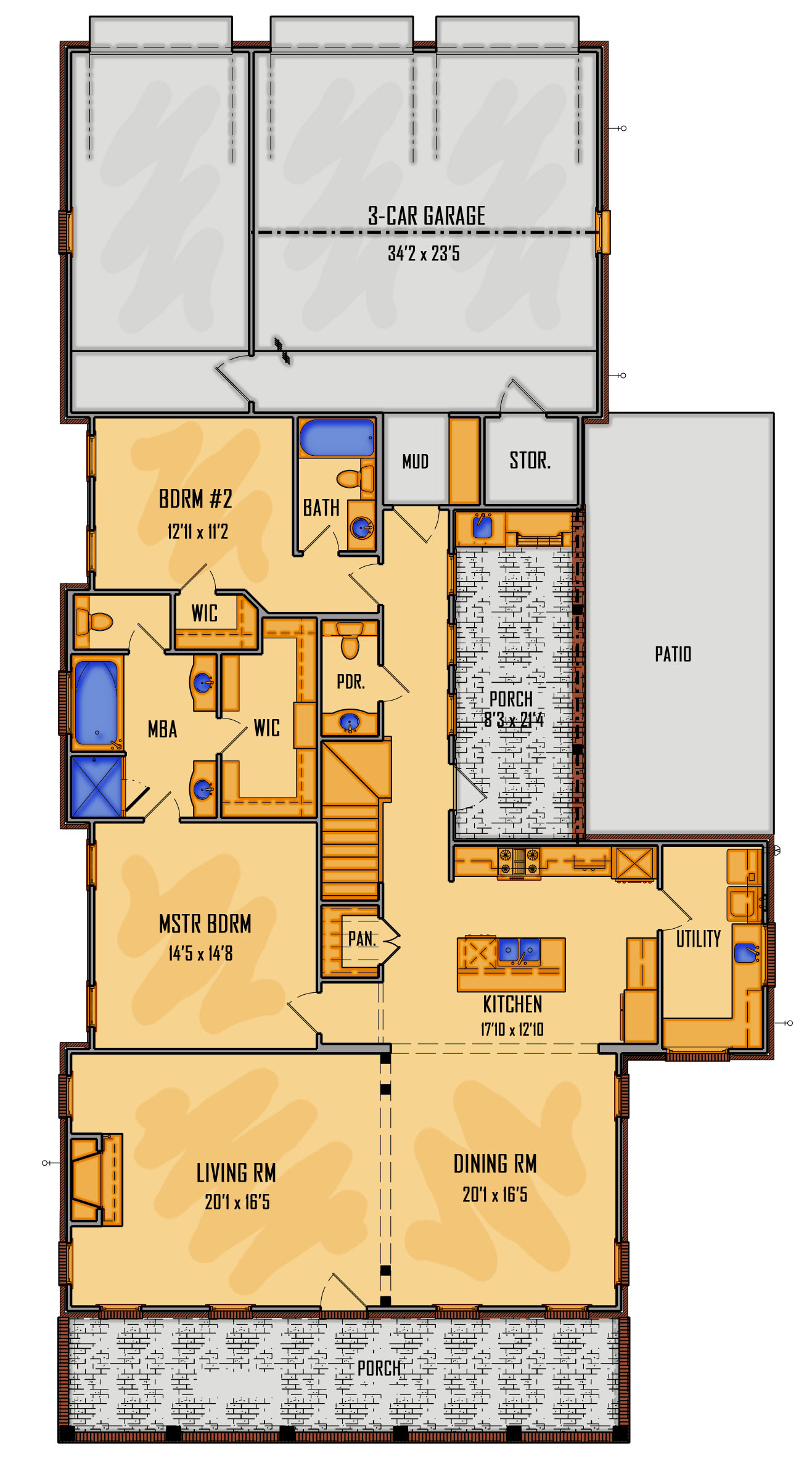

First Floor:

1912

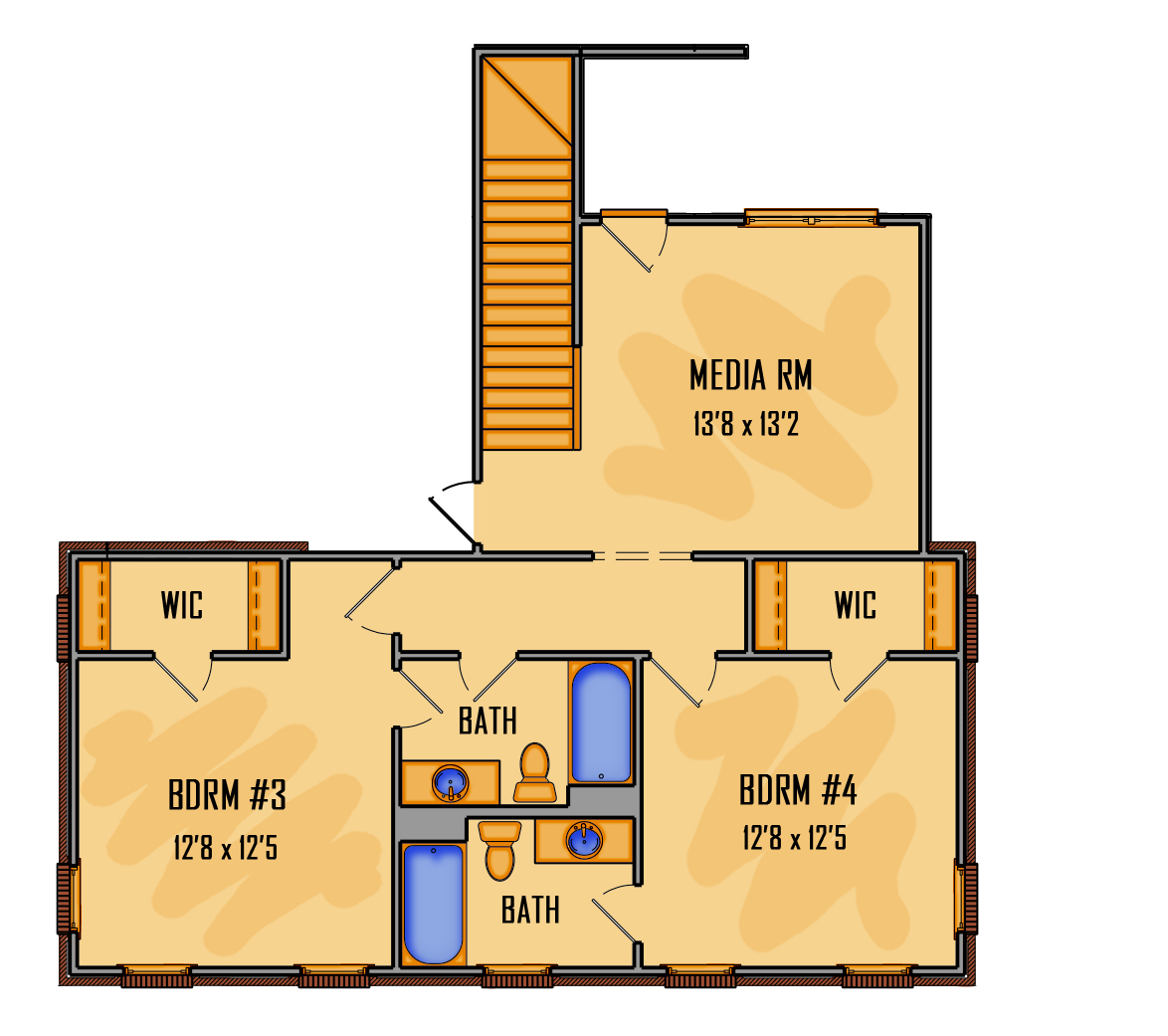

Second Floor:

865

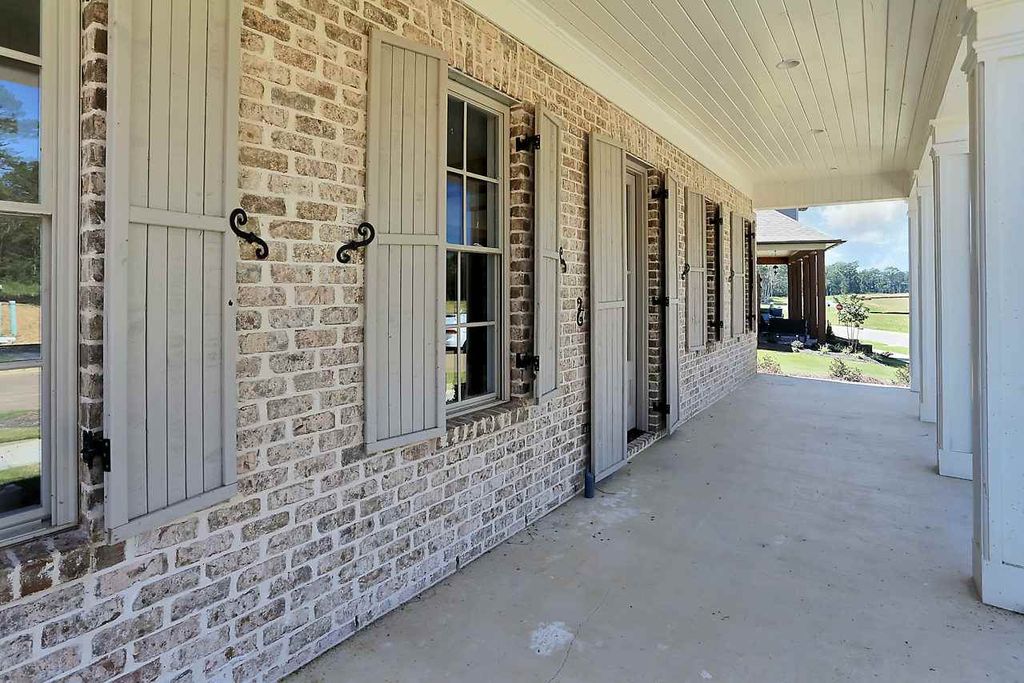

Porches:

474

Total Heated and Cooled:

2777

Total Sq. ft. Under Roof:

4063

Purchase Options

5 sets, +$700.00

9 sets, +$100.00

Mirrored Plan, +$150.00

PDF, +$400.00

•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•

Details

Features

General Options:

Designed for Narrow Lot

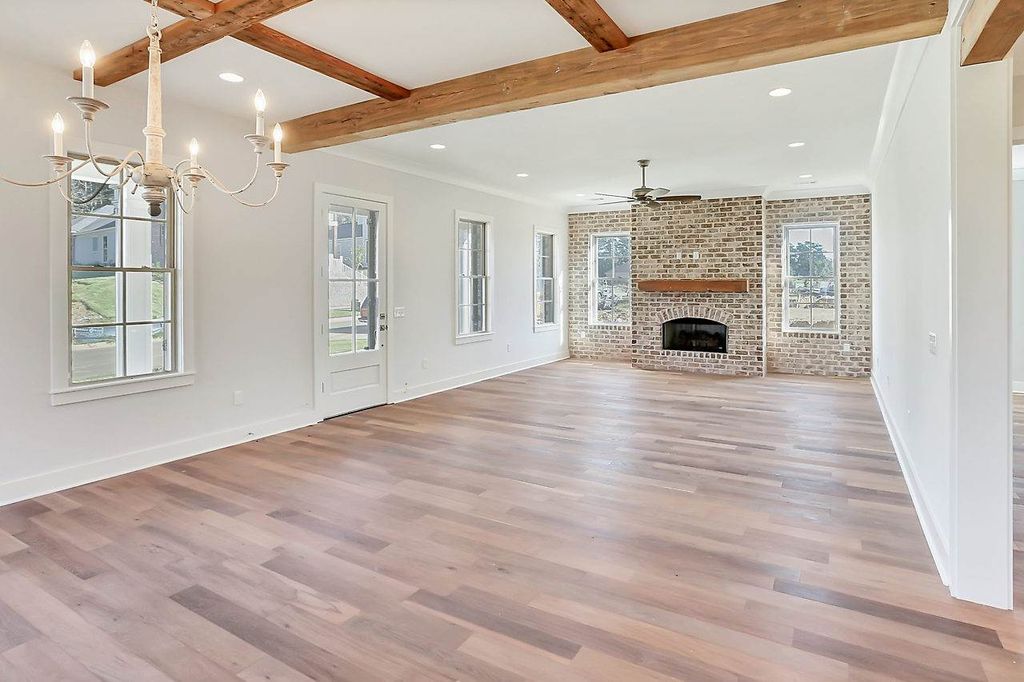

Fireplace

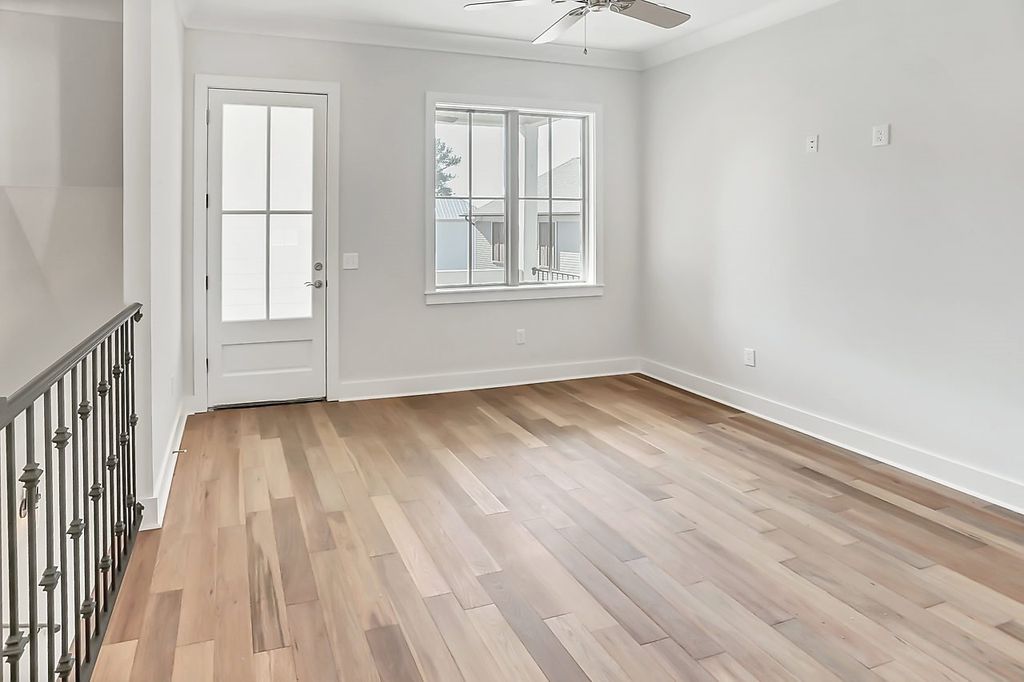

Flex Space

Formal Dining

Media Room

Mud Room

Office

Open Floor Plan

Storage

Walk-in Closets

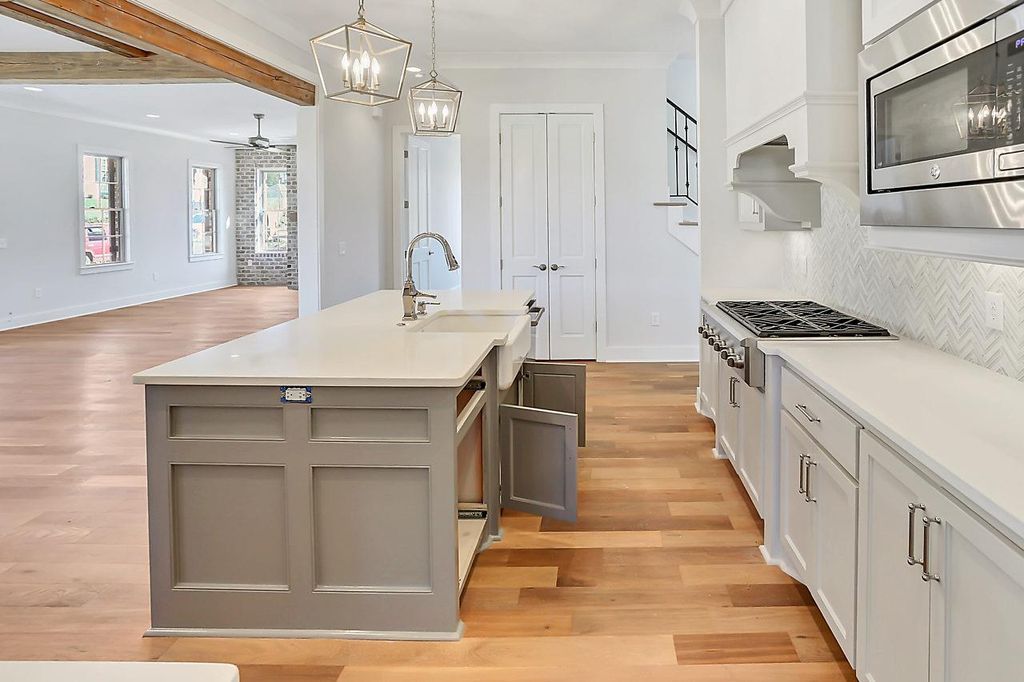

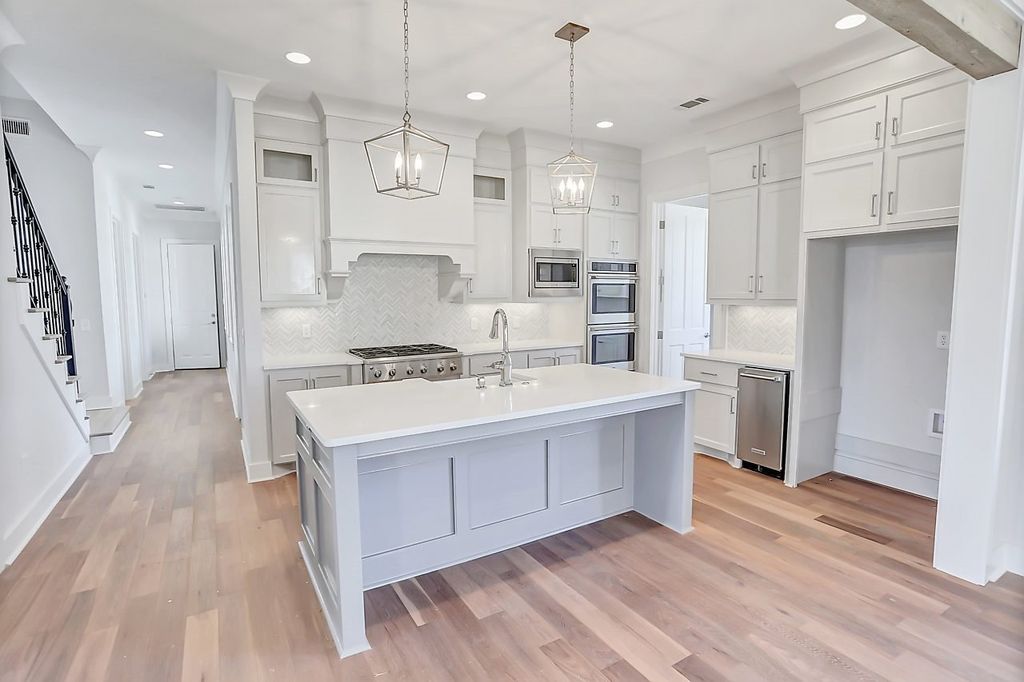

Kitchen Options:

Double Ovens

Eating Bar in Kitchen

Island

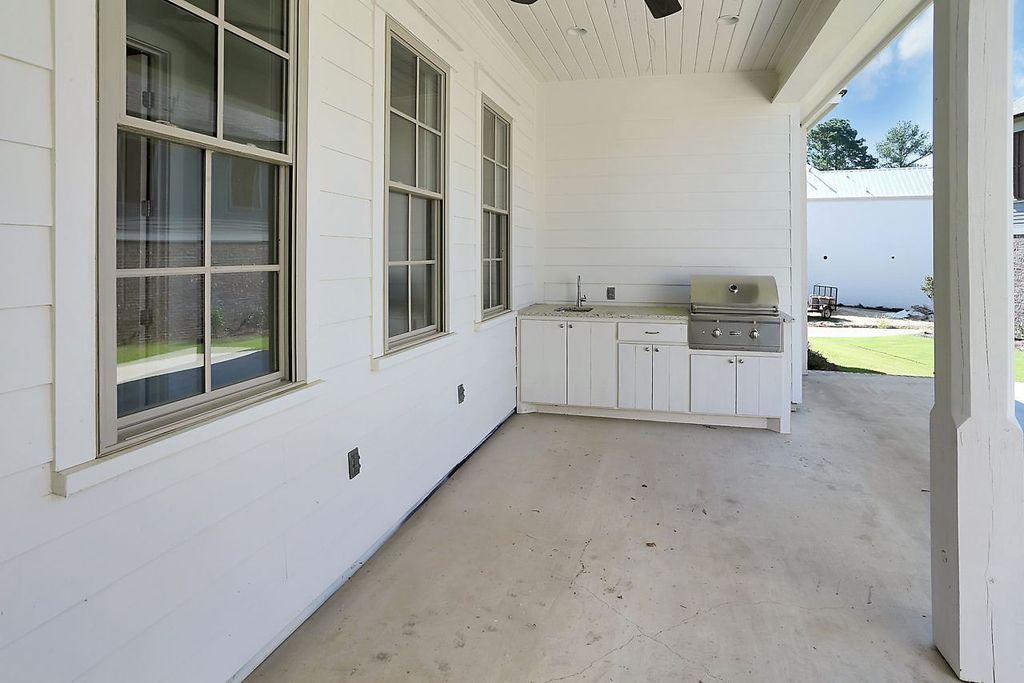

Outdoor Kitchen

Walk-in Pantry

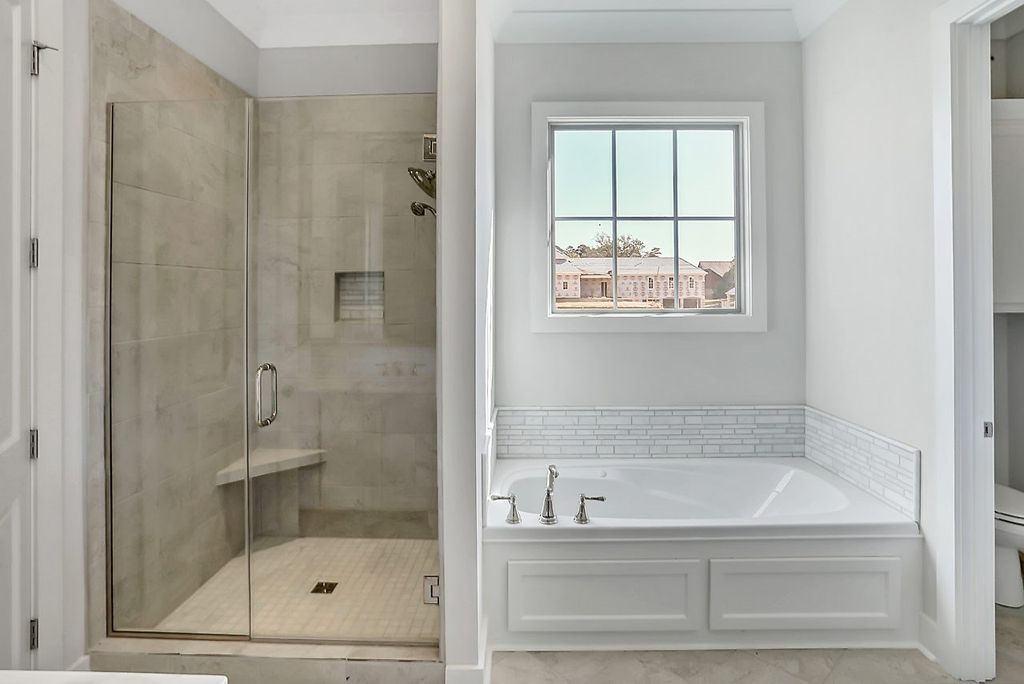

Master Suite Options:

Master on First Floor

Enclosed Toilet Room

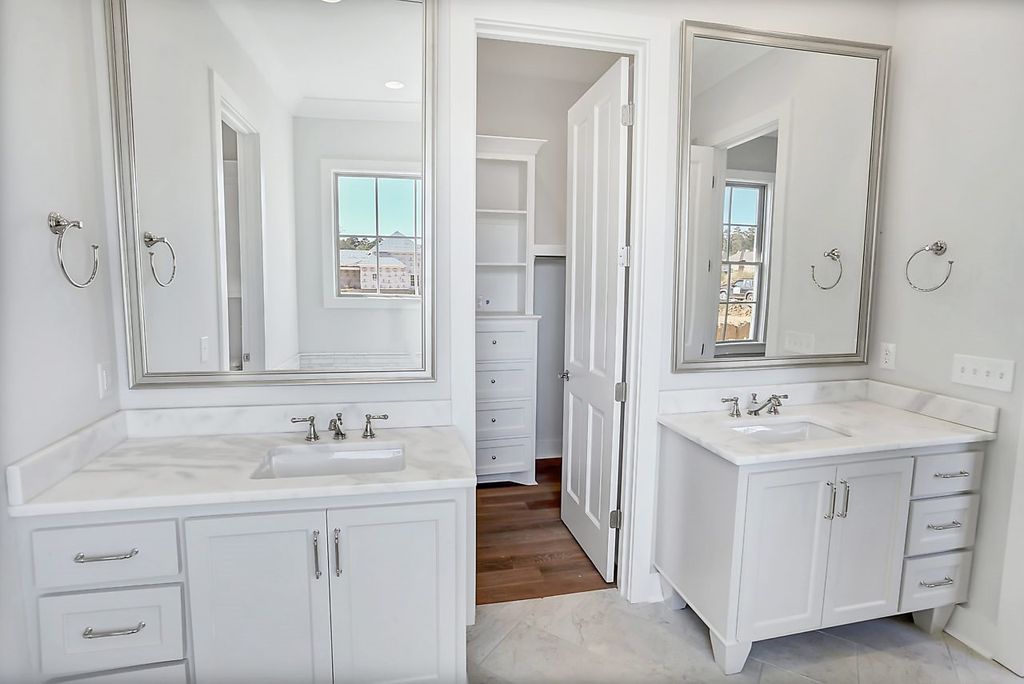

His & Her Baths

His & Her Closets

Separate Tub and Shower

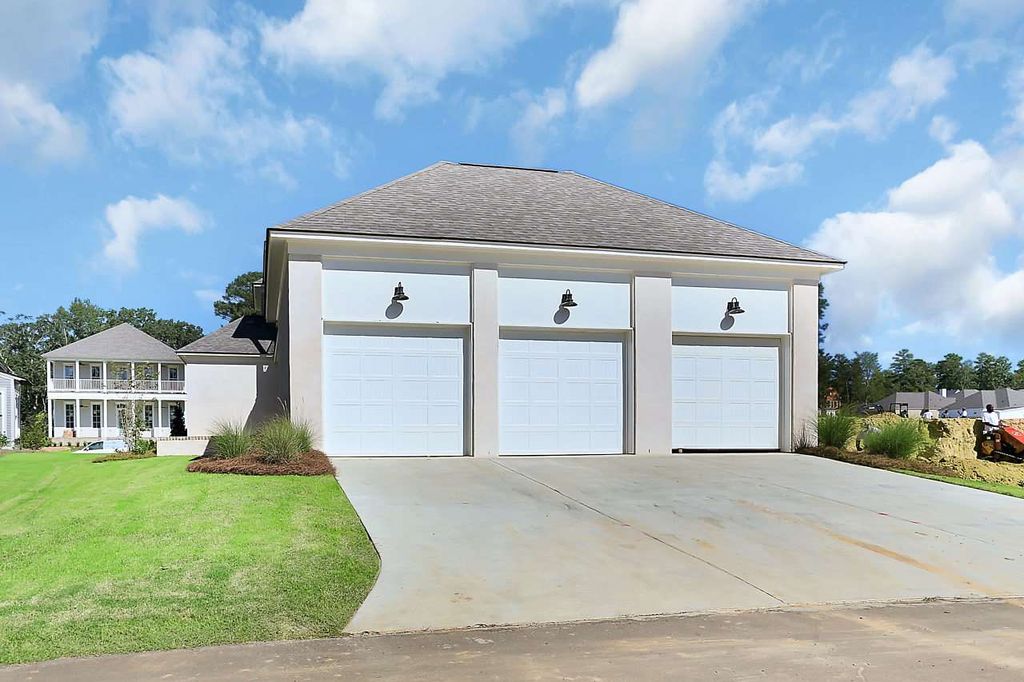

Garage

Garage:

865 (Including Storage)

Garage Stalls:

3

Garage Entry:

Rear

Style:

Acadian

French Country

Georgian

Dimensions

Ridge Height:

ft.:

29

in.:

10

Width:

ft.:

46

in.:

4

Secondary Ceiling Height:

ft.:

10

in.:

0

Depth:

ft.:

91

in.:

3

Main Ceiling Height:

ft.:

10

in.:

0

Wall Framing:

2"x4" studwalls

Roof

Main Roof Slope:

09/12

Roof Material:

Shingles

Roof Framing:

Stick Built

Exterior Materials:

Brick

What's Included:

Cover Sheet

Cross Section{s}

Detailed Floor Plan(s)

Electrical Plans

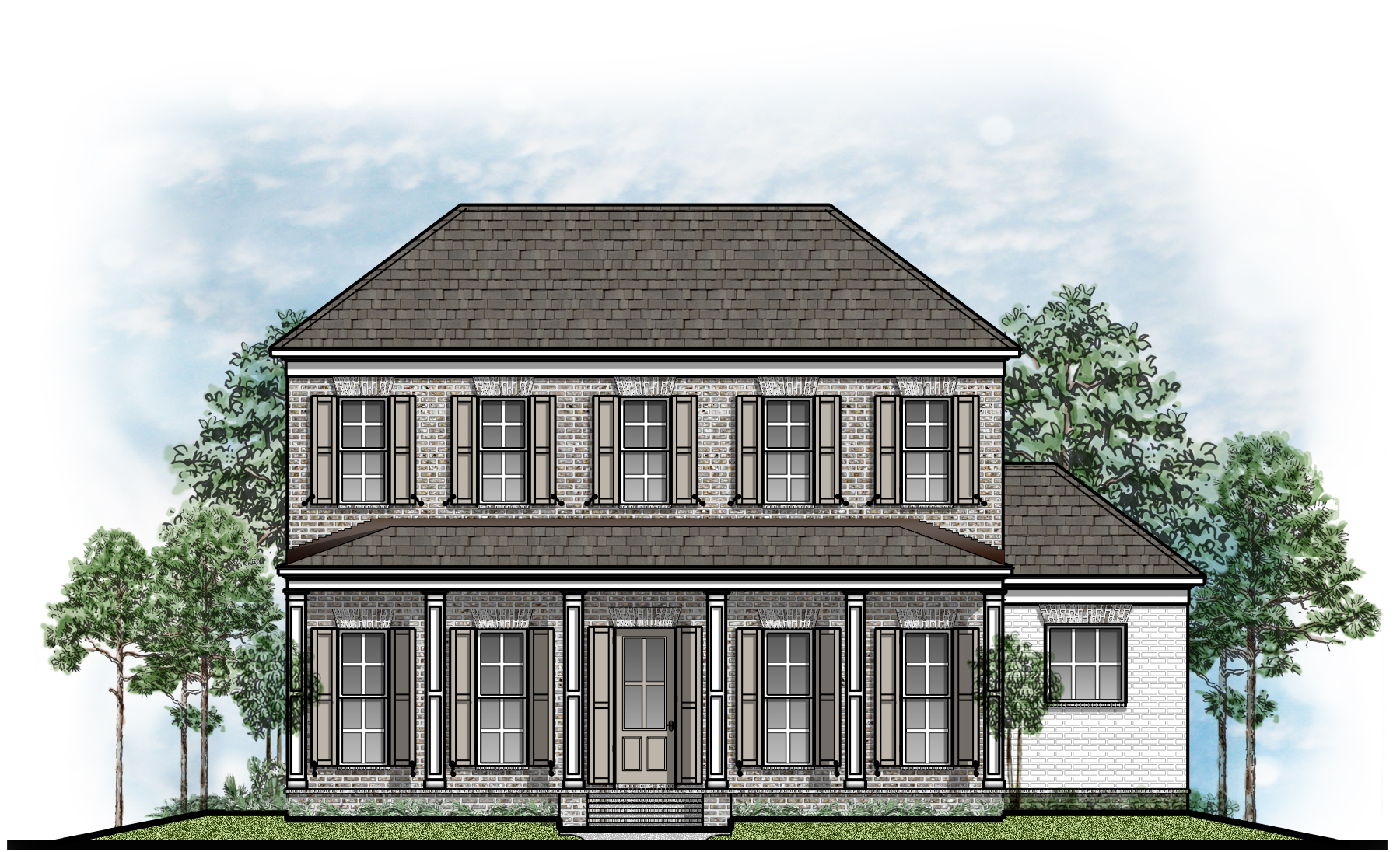

Exterior Views

Foundation plan

Roof Plan, Birds Eye View

Wall Section(s)

$700.00

SKU: 3RD-87-16

Price: $700.00
